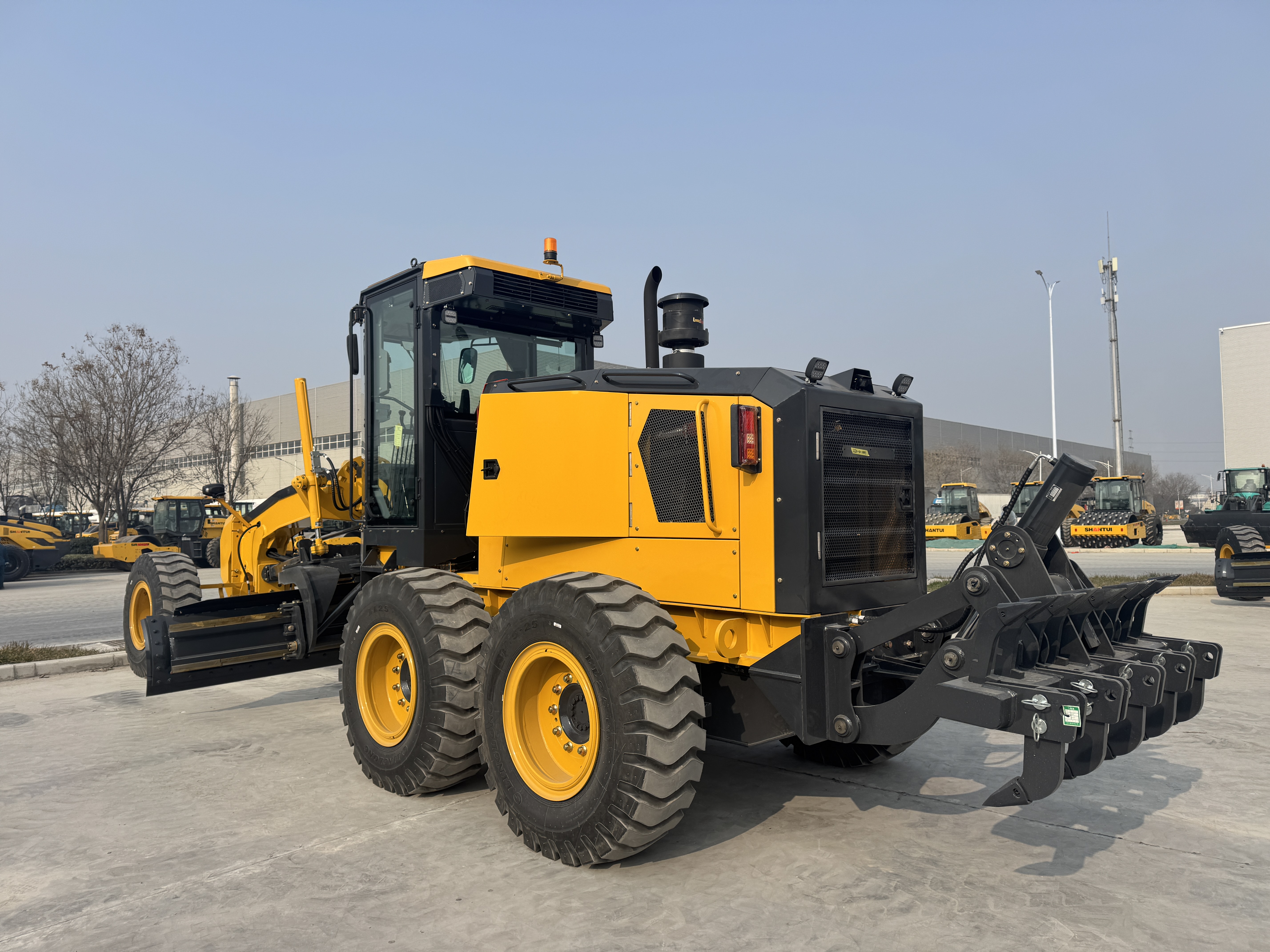

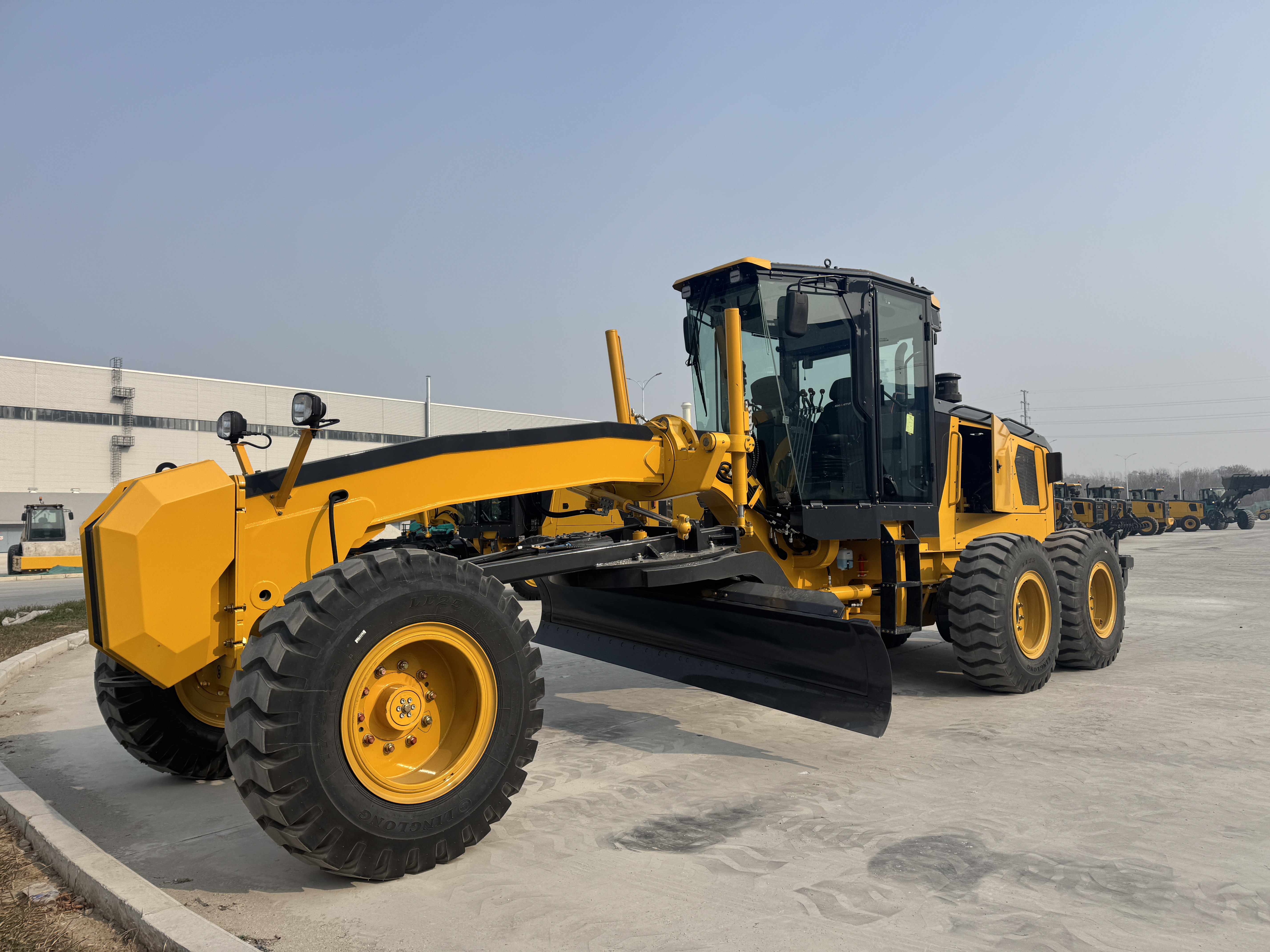

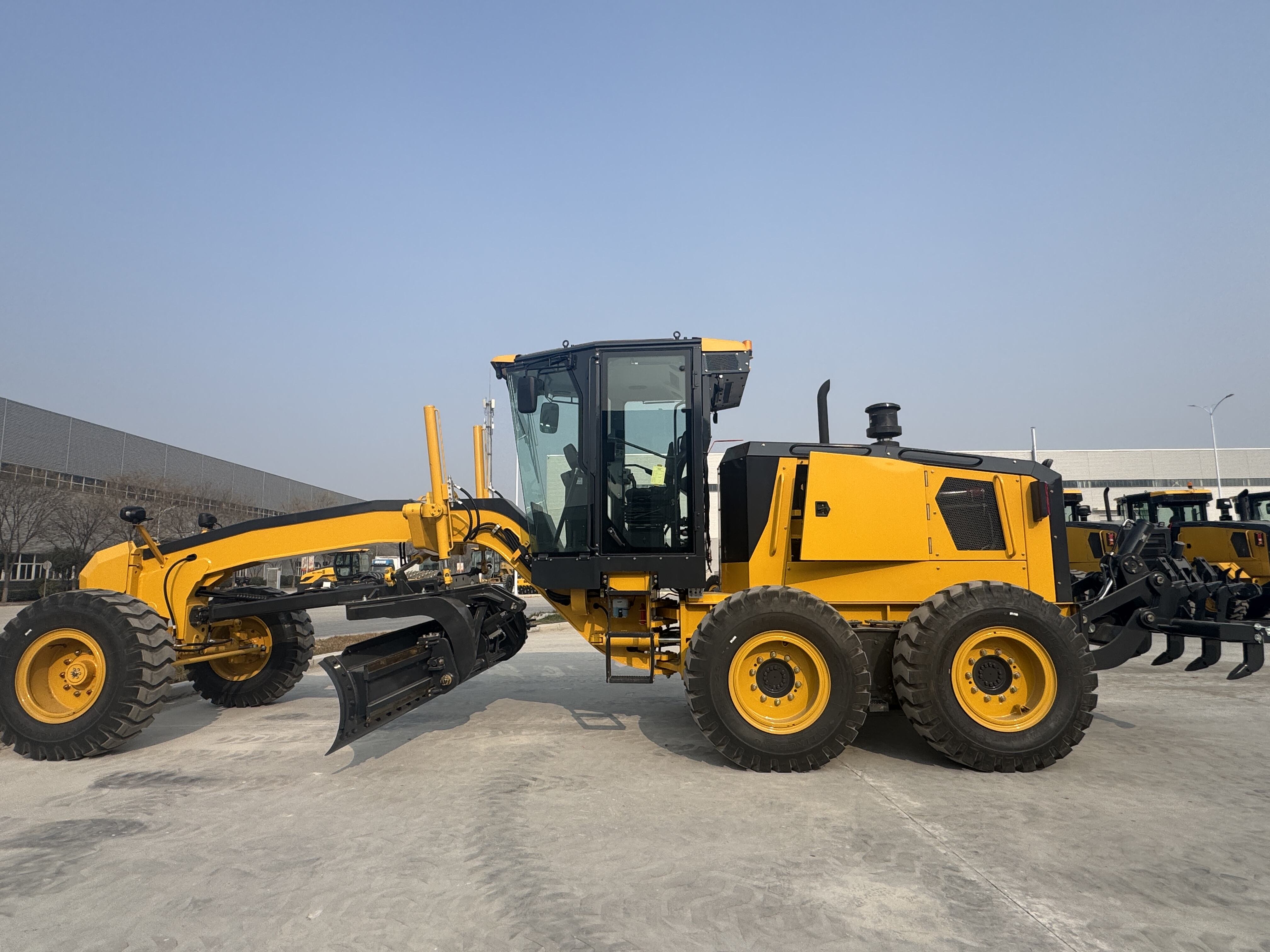

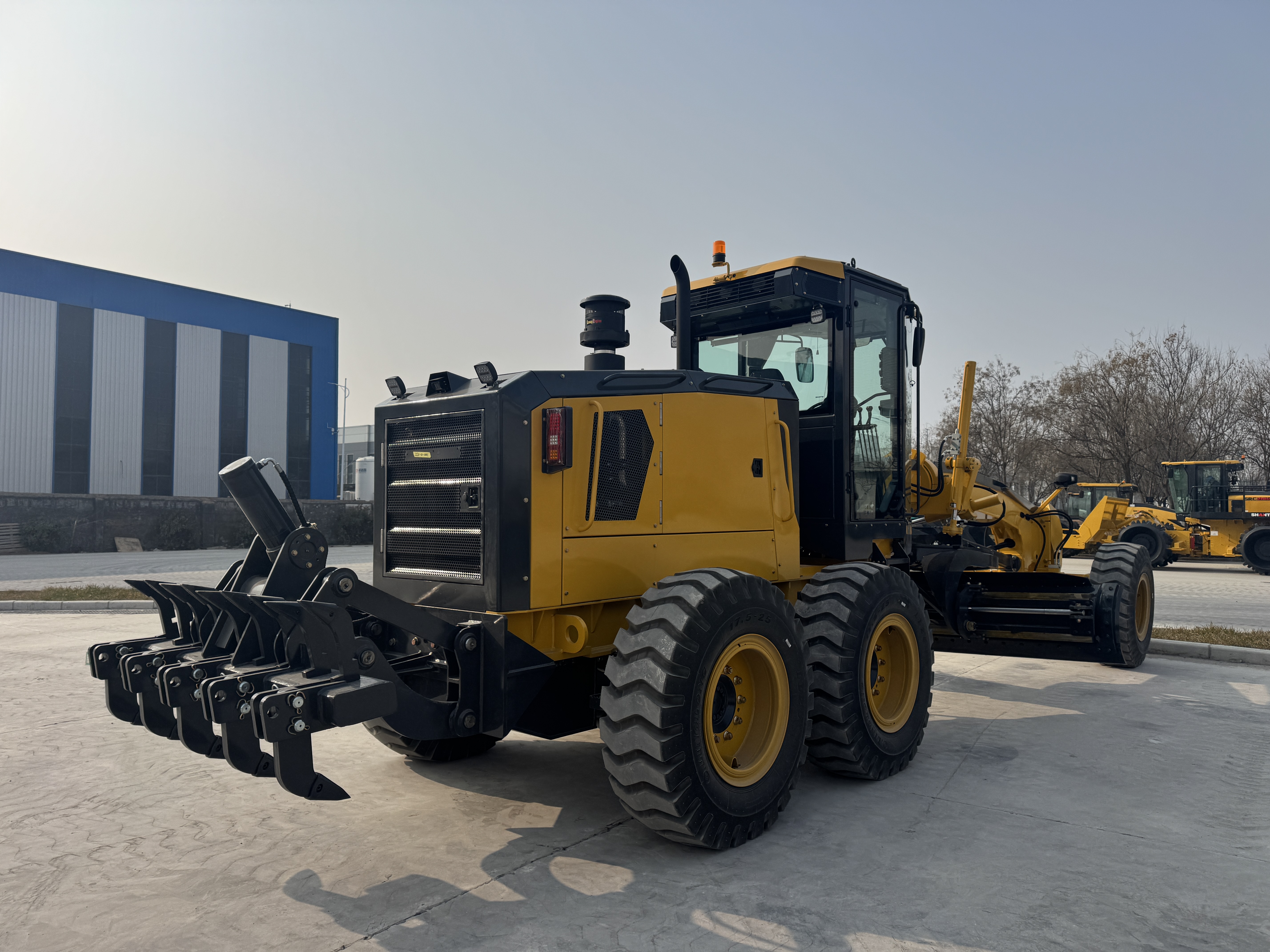

SG17-B6 Motor Grader
Cummins 6BTAA5.9-C180 engine(132KW),
Split cab, Hangzhou gear box, Meichi drive axle,
Front counterweight, Rear ripper, Standard seat,
AC, 3660mm blade, General-purpose tire,
Operating weight:16.07T.
| ENGINE | HYDRAULICS | |||||||||
| Model |
Cummins 6BTAA5.9-C180 |
Tandem pump | Gear pump.32ml/r | |||||||
|
Number of cylinders |
6 | Relief pressure for working equipment | 18MPa | |||||||
| Type | 4-cycle,direct injection,water-cooled | Relief pressure for steering | 6.5MPa | |||||||
| Aspiration | Turbocharged,air-air intercooled | Relief pressure for brakes | 10MPa | |||||||
| Borexstroke |
108*136mm |
|||||||||
| Displacement | 5.9L | Fuel tank | 360L | |||||||
| Gross power | 132kW@2200rpm | Hydraulic oil tank | 85L | |||||||
| Max.traction | 78kN | Engine crank case | 19L | |||||||
| Max.torque |
770N.m/1500rpm |
Engine coolant | 33L | |||||||
| Rated fuel consumption | 225g/kW.h | ELECTRICAL SYSTEM | ||||||||
| Emission | Battery | 2x12V,105Ah | ||||||||
| Alternator | 28V,70A | |||||||||
| Transmission | Fixed-axis type,electro-hydraulic control | Starter motor | 24V,6kW | |||||||
| Torque converter | Single-stage,single-phase,three basic elements | OPERATING WEIGHT | ||||||||
| Rear axle | Modular,planetary reduction,"no-Spin"anti-skid differential | Standard | 4800kg | |||||||
| Tandem drive Roller chain.Oscillating angle:±15° | With rear ripper | 5400kg | ||||||||
| Tire | 17.5-25PR12 | With front blade | 5460kg | |||||||
| Front axle |
Oscillating angle:±15° Tilting angle:±17° |
With front blade &rear ripper | 16070kg | |||||||
| RIPPER(OPTIONAL) | ||||||||||
| STEERING | Ripping depth | 378mm | ||||||||
| Type | Hydraulic power | Shanksupports | 5 | |||||||
| Front wheel steering angle |
±45° |
Shank support spacing | 520mm | |||||||
| Articulation angle |
±25° |
Working width | 2080mm | |||||||
|
Min.turning radius BRAKES |
7500mm |
FRONT BLADE(OPTIONAL) | ||||||||
| WIDTH XHEIGHT | 2740x890mm,2520x925mm | |||||||||
| Disc type,foot operated,single circuit, | Thickness | 2mm | ||||||||
| Service brake | Max.lifting height | 660mm | ||||||||
| Parking brake | Drum type,manually actuated | Max.digging depth | 425mm | |||||||
| MOLDBOARD | DIMENSIONS | |||||||||
| Rotation |
360° |
A Overall length:Standard | 9313mm | |||||||
| Moldboard width | 3660mm | A Overall length:With rear ripper | 10193mm | |||||||
|
Moldboard height |
620mm | A Overall length:With front blade | 9819mm | |||||||
| Moldboard thickness | 20mm | A Overall length:With front blade &rear ripper |
10699mm | |||||||
| Moldboard tip angle | 22~73° | |||||||||
| BLength:Front axle to mid tandem | 6342mm | |||||||||
|
Max.cutting depth |
750mm | |||||||||
| C Length:Between tandem axles | 1540mm | |||||||||
|
Max.lifting height |
450mm | |||||||||
| D Height:Cab | 3400mm | |||||||||
|
Moldboard side shift(left/right) |
650/650mm | |||||||||
| E Tread | 2155mm | |||||||||
| Max.shoulder reach(left/right) | 1665/1950mm | |||||||||
| FWidth:Outside tires | 2600mm | |||||||||
| Max.titing angle (left/right) | ±90° | |||||||||
| G Moldboard width | 3660mm | |||||||||
| SPEED | ||||||||||
| Forward,1-6 | 5.4\8.4\13.4\20.3\29.8\39.6km/h | H Minimum ground clearance | 400mm | |||||||
| Reverse,1-3 | 5.4\13.4\29.8km/h | |||||||||
