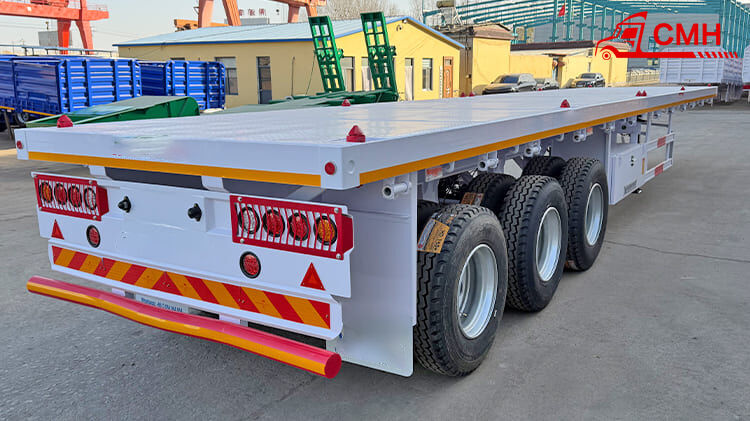

Flatbed Semi Trailer
The 3 axle flatbed semi trailer has been thoroughly upgraded to deliver dependable performance across a wide range of transport conditions and regulatory requirements. Engineered for versatility, it supports both containerized cargo and bulk goods, offering stable and consistent operation throughout long-haul routes.
2026 New 3 Axle 40 Ft Flatbed Semi Trailer for Sale
2026 New 3 Axle 40 Ft Flatbed Semi Trailer for Sale
2026 New 3 Axle 40 Ft Flatbed Semi Trailer for Sale
2026 New 3 Axle 40 Ft Flatbed Semi Trailer for Sale
2026 New 3 Axle 40 Ft Flatbed Semi Trailer for Sale

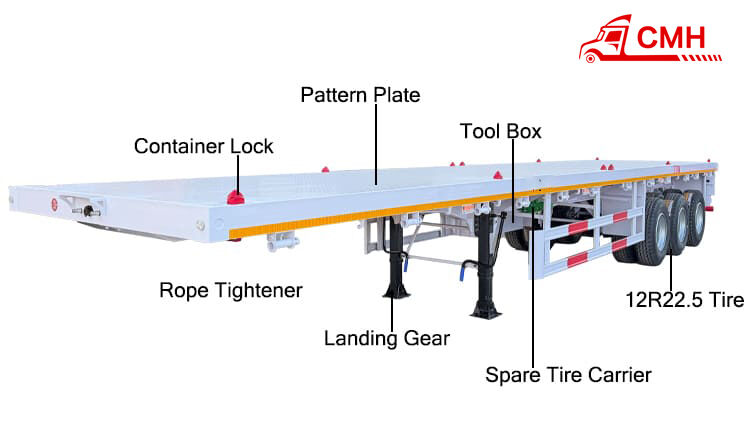

Specification of Flatbed Semi Trailer
Overall Dimension: 12500mm*2500mm*1590mm
Load Capacity: 60 ton
Floor Plate: thickened pattern floor plate
Side Beam: 160mm high
Axles: 3 axles, 13 ton
Tire: 12 units, 12R22.5
Landing Gear: 28 ton
Bumper: 4mm thick
Trailer Feature: large capacity fuel tank
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp with protective net
2026 New 3 Axle 40 Ft Flatbed Semi Trailer for Sale in Nigeria
Advantage of Flatbed Semi Trailer
At the foundation of the design is a rugged frame crafted from high-strength low-alloy steel chosen for its superior resistance to bending, torsional stress, and long-term fatigue. The flatbed semi trailer for sale is assembled using precision automated submerged-arc welding, ensuring uniform weld seams with deep penetration. This advanced welding method reinforces the stability of the main beams and cross structures, enabling the trailer to withstand continuous heavy-duty use without losing structural integrity.
The open-deck structure of the 40 ft flatbed semi trailer enhances its flexibility for everyday hauling tasks. It accommodates both 20-foot and 40-foot containers, meeting the requirements of varied transport operations. Twelve locking points are distributed along the deck, allowing operators to secure containers quickly and safely. This layout not only improves loading efficiency but also helps maintain consistent workflow performance for logistics teams working across different regions of Nigeria.

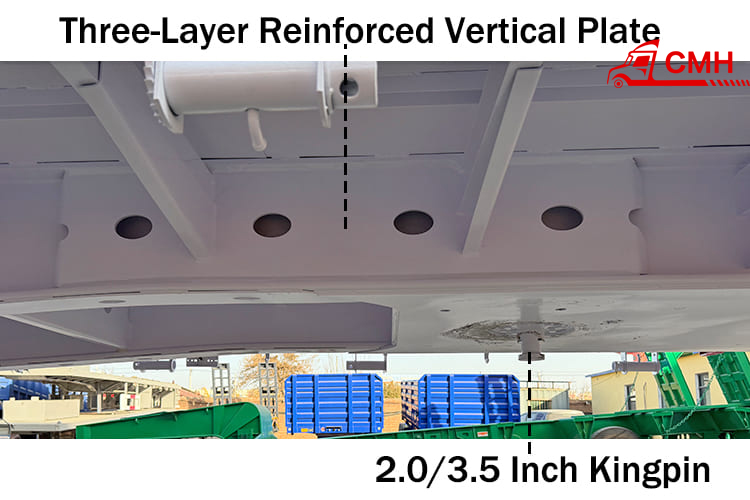

Critical load-bearing zones—including the gooseneck section—are fortified using a reinforced triple-layer steel layout. Such reinforcement significantly increases the durability of the 3 axle flatbed semi trailer, particularly in environments where operators frequently encounter uneven ground surfaces or concentrated loads.
To maintain chassis rigidity, diagonal reinforcements are strategically installed between the cross members and the main beams at 500 mm intervals. These braces help distribute stress evenly across the trailer body, reducing the risk of twisting or local deformation under heavy loads.
The cross members themselves are fabricated from 100 mm channel steel, forming a solid structural base that strengthens the overall frame of the flatbed semi trailer for sale and ensures stable support during demanding operations.

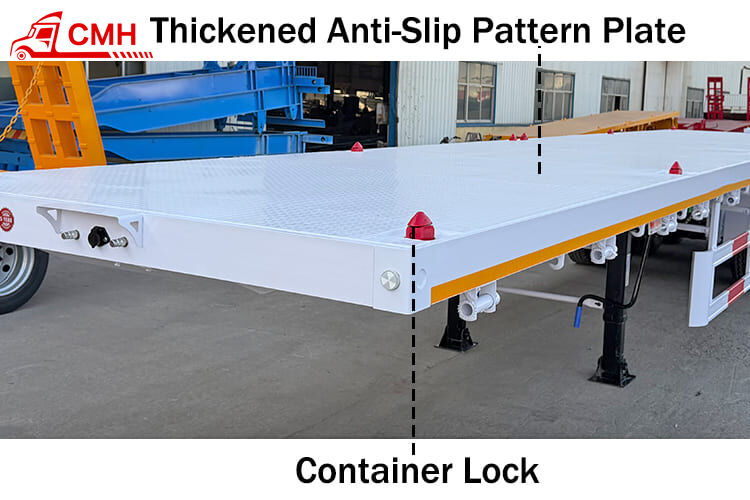

The deck of the 40 ft flatbed semi trailer is constructed with patterned high-strength steel plates that offer improved anti-slip performance and wear resistance. These materials were specifically selected for environments with fluctuating humidity, heavy abrasion, and frequent loading activities. As a result, the trailer provides a secure platform for transporting various cargo types while maintaining long-term surface durability.
A tri-axle configuration ensures balanced load distribution throughout the entire flatbed semi trailer for sale. By dispersing weight evenly, this setup reduces concentrated pressure points that could lead to premature metal fatigue. The optimized axle distribution extends the trailer’s service life and ensures reliable performance on long routes and rugged road networks widely found in Nigeria.
The practical spare-tire carrier is another functional addition. Built from impact-resistant, heat-resistant alloy steel, it offers reliable support for long-distance transport operations, reducing downtime caused by unexpected tire issues. Its large carrying capacity ensures continuous operation even under fluctuating weather and road conditions.
A reinforced mechanical suspension system underpins the 3 axle flatbed semi trailer, utilizing multi-layer leaf springs combined with a 70 mm balance pin. This configuration provides excellent shock absorption, reducing vibrations transmitted to the frame and cargo. By minimizing tire wear and stabilizing the trailer during uneven-terrain travel, the system enhances driving comfort and operational safety for the 40 ft flatbed semi trailer.
COMPANY ADVANTAGES:
| 1 | Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
| 2 | Expert in kinds of heavy trucks and spare parts. |
| 3 | Personalized customization to meet your working requirements. |
| 4 | High quality of Original parts & OEM services. |
| 5 | Engineers and experts on call for pre/after sale support. |
| 6 | One-stop service with heavy trucks, parts as well as stand-by advice & support. |
Profile of our company:
JINAN CMHAN TRUCK SALES CO.,LTD. is authorized truck dealer by China National Heavy Duty Truck Group Co., Ltd (CNHTC) in Shandong Province. It was founded in 2023, located in Jinan which is the famous production base of heavy duty truck in China. The 4 main functions of our company are truck&machinery&trailer sale, spare part supply, information feedback, and after-sales service.
The team of our company could provide all kinds of trucks and buses meeting the requirement of customers with the best price. We have many years of experience in supplying trucks,buses,trailers, strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional box packing, professional and reliable loading goods in containers, on-time delivery and competitive price.
Products of our company are sold all over China, and are exported to more than Eighty countries and regions such as Guinea ,Nigeria ,Benin ,Central Africa ,Mongolia , DRC, Mauritania, Ghana, Benin, Angola, Tanzania, Congo, South east Asia and Latin America. In a control of price and quality, our products are highly appreciated in these markets.
