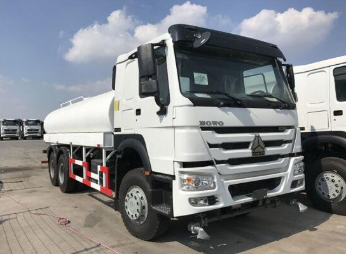

| SINOTRUK HOWO 6x4 WATER TANK TRUCK SPECIFICATIONS | |||||
| Manufacture | Made in 2018 year | CNHTC, China | |||
| Cubage |

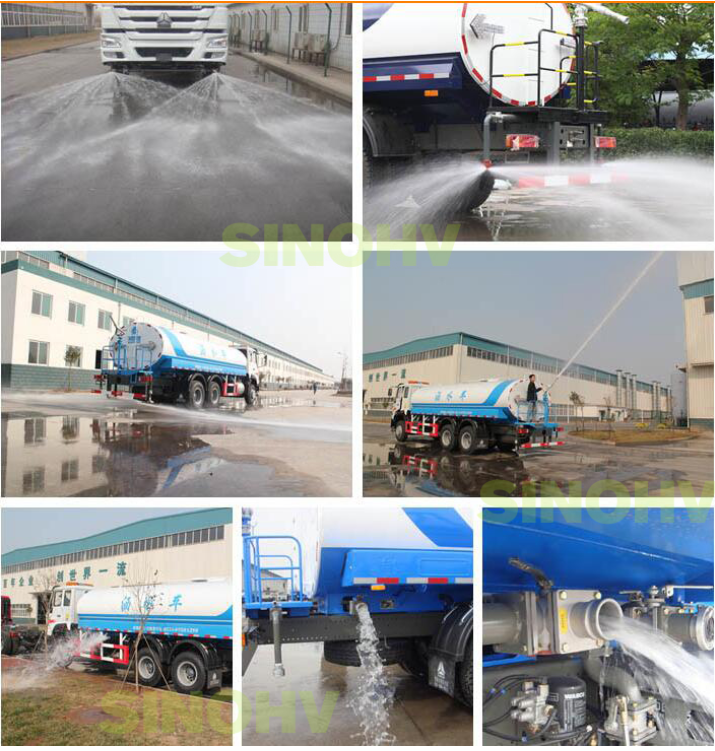

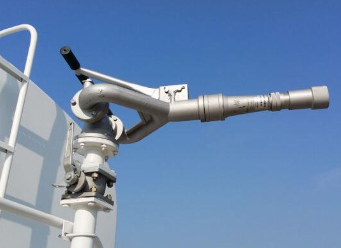

20000L( other capacity for option ) Pump:Water sprinkling truck dedicated pump, 65QSB-50/110,output 50cbm/h.pump lift 110m. High-pressure water gun shoot,gun range 35m Sprinkling scope:14-18 m |
||||
| Weight in kg | Kerb weight (Kg) | 12590 | |||
| Gross vehicle weight (Kg) | 3000 | ||||
| Dimension | Dimensions | Length(mm) | 10650 | ||
| Width(mm) | 2550 | ||||
| Height(mm) | 3650 | ||||
| Wheel base (mm) | 4600+1350 | ||||
| Performance | Maximum driving speed (km/h) | 92 | |||
| Fuel consumption (1/100 km) | 35 | ||||
|
Cab |
Model | SINOTRUK HW76 Lengthen cab | |||
| single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |||||
| Engine | Model | D12.38-40(Euro 4) | |||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||||
| Horsepower | 380hp ( 340hp ,420hp for option ) | ||||
| Maximum output Kw/r/min | 247/2200 | ||||
| Maximum torque N.m/r/min | 1350/1300-1600 | ||||
| Bore x Stroke | 126x130mm | ||||
| Valve | 2 | ||||
| Displacement | 9.726L | ||||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan | |||||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||||
| I II III IV V VI VII VIII IX X | |||||
| 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1 | |||||
| R1-13.91 R2-3.18 | |||||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||||
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving). | ||||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | ||||
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | ||||
| Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
||||
| Wheels & Tyres | Rims:10 hole-steel ;Tyres:12R22.5 tubeless tyre with 1 Spare tire.( other for option ) | ||||
| Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||||
| Oil Tank | Square type-400L Aluminum alloy fuel tank | ||||
| OPTIONS | Revolving Light on roof of cab | ||||
| Upper body | volume: 4000L - 35000L | ||||
| Sprinkler, sprayer option | |||||
| Rear operating platform: unequipped | |||||
| Tires: 12R22.5 , 315/80R22.5 , 13R22.5 tubeless , 12.00R20 radial etc | |||||
| ABS, EVB engine brake, | |||||
COMPANY ADVANTAGES:
1 |
Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
2 |
Expert in kinds of heavy trucks and spare parts. |
3 |
Personalized customization to meet your working requirements. |
4 |
High quality of Original parts & OEM services. |
5 |
Engineers and experts on call for pre/after sale support. |
6 |
One-stop service with heavy trucks, parts as well as stand-by advice & support. |
FAQ
Q:HOW CAN YOU INSURE MY MONEY BE SAFE?
A:Firstly you can send the money via trade assurances,Secondly We have worked in the field of truck sale for many years,and we have served thousands of buyer all over the world,We take the reputation as our life.we won’t deduct any money if the business break down in the end.
Q:WHAT’S YOUR MOQ AND DELIVERY TIME?
A:Usually,our MOQ is 1 sets,and our delivery time is within 30days for new placed order, and for stocked trucks our lead time is within 5 workdays.
Q:CAN I CHOOSE THE TRANSPORTATION METHOD BY MYSELF?
A:Yes,of course.But if CIF, you choose a different ships,that means the price will be different,(the price of bulk cargo ship is different from RO-RO ship )so the price will be changed,please notice that.
Q:DO YOU SUPPLY SPEAR PARTS?
A:Yes,we can provide all parts of the truck,like engine parts,electric parts,truck body parts and truck cabin parts.
Q:HOW CAN WE GET AFTER SALE SERVICE ?
A:We SINOTRUK Group has many overseas after sale service center, you can get services in these center,Also we can provide you technical support and parts supply,.
