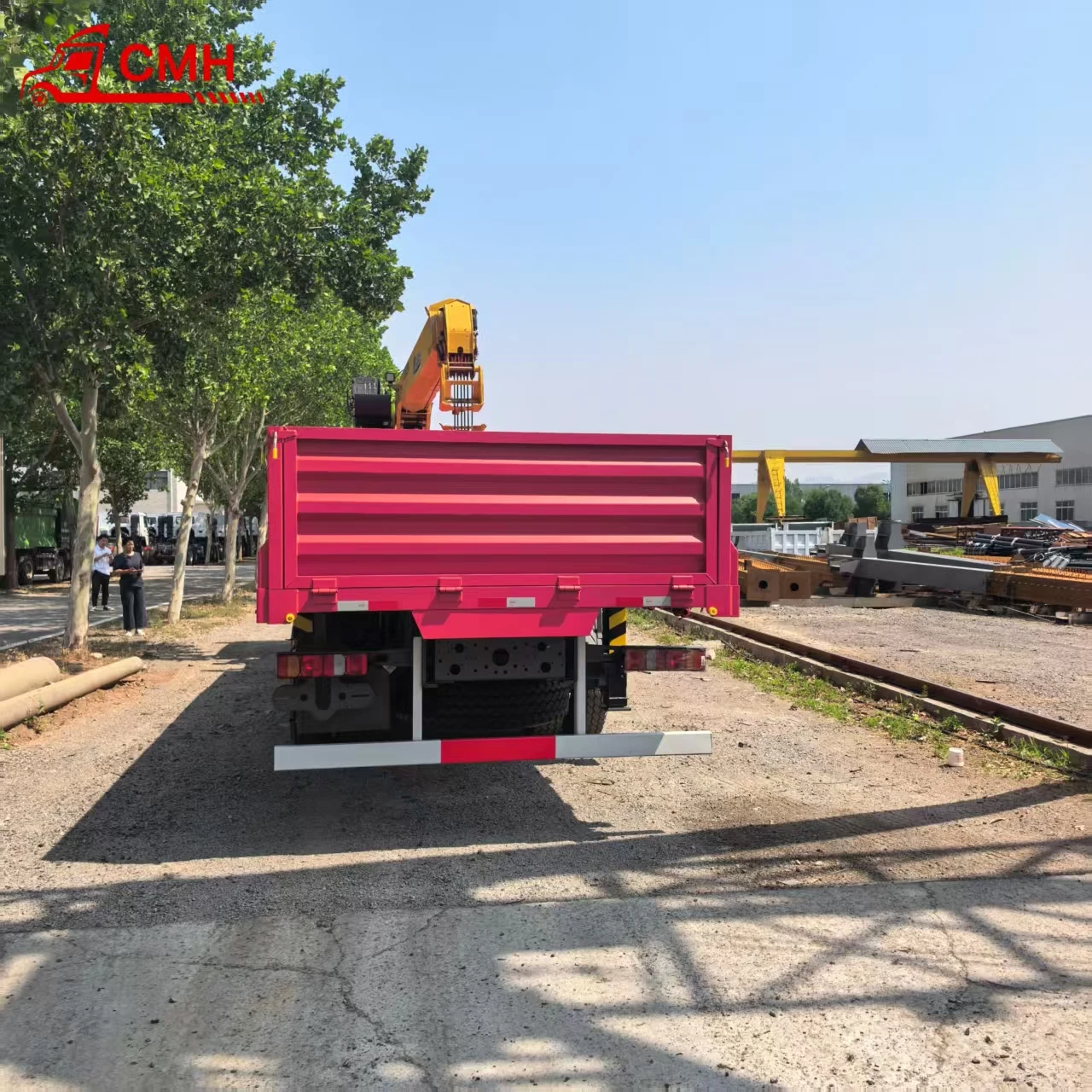

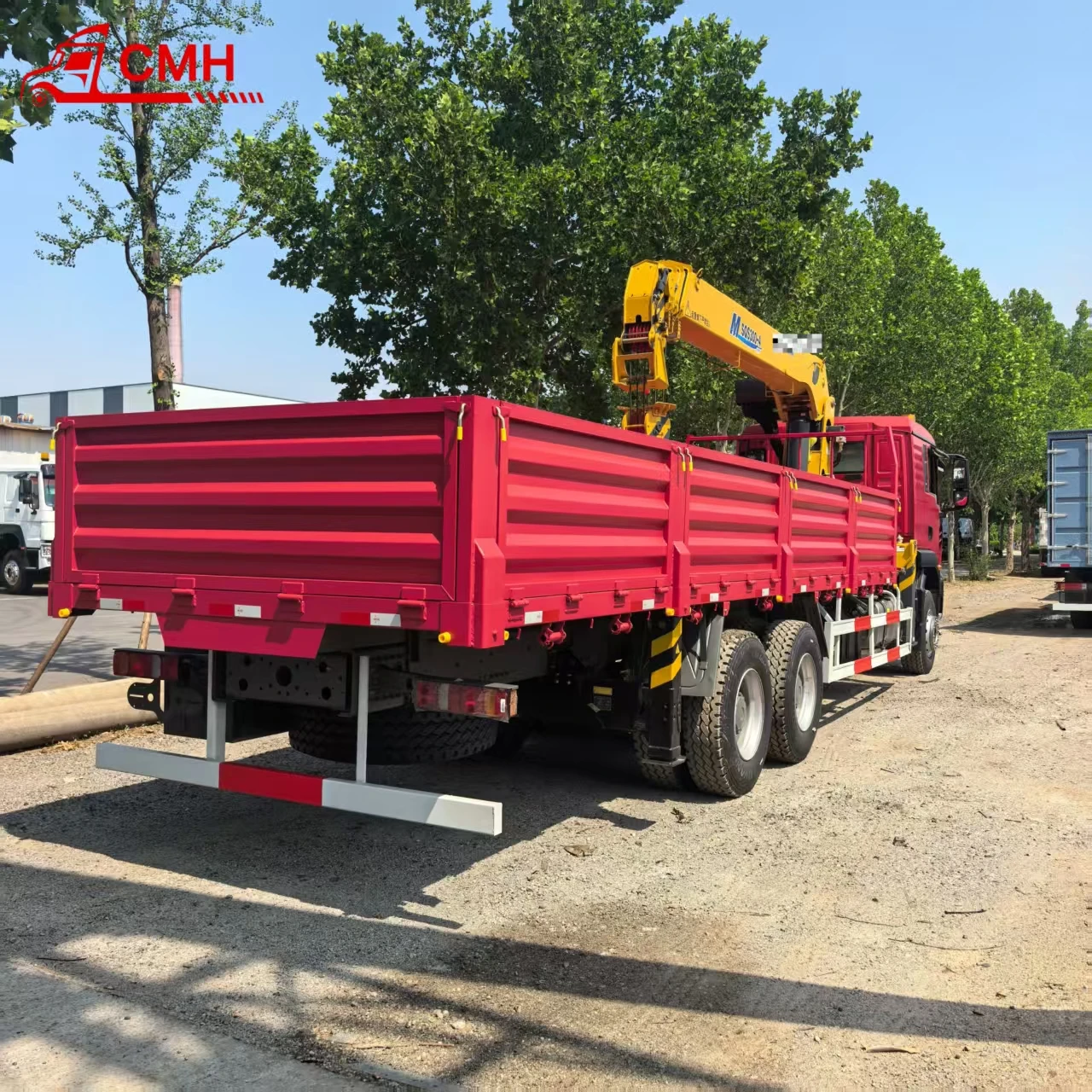

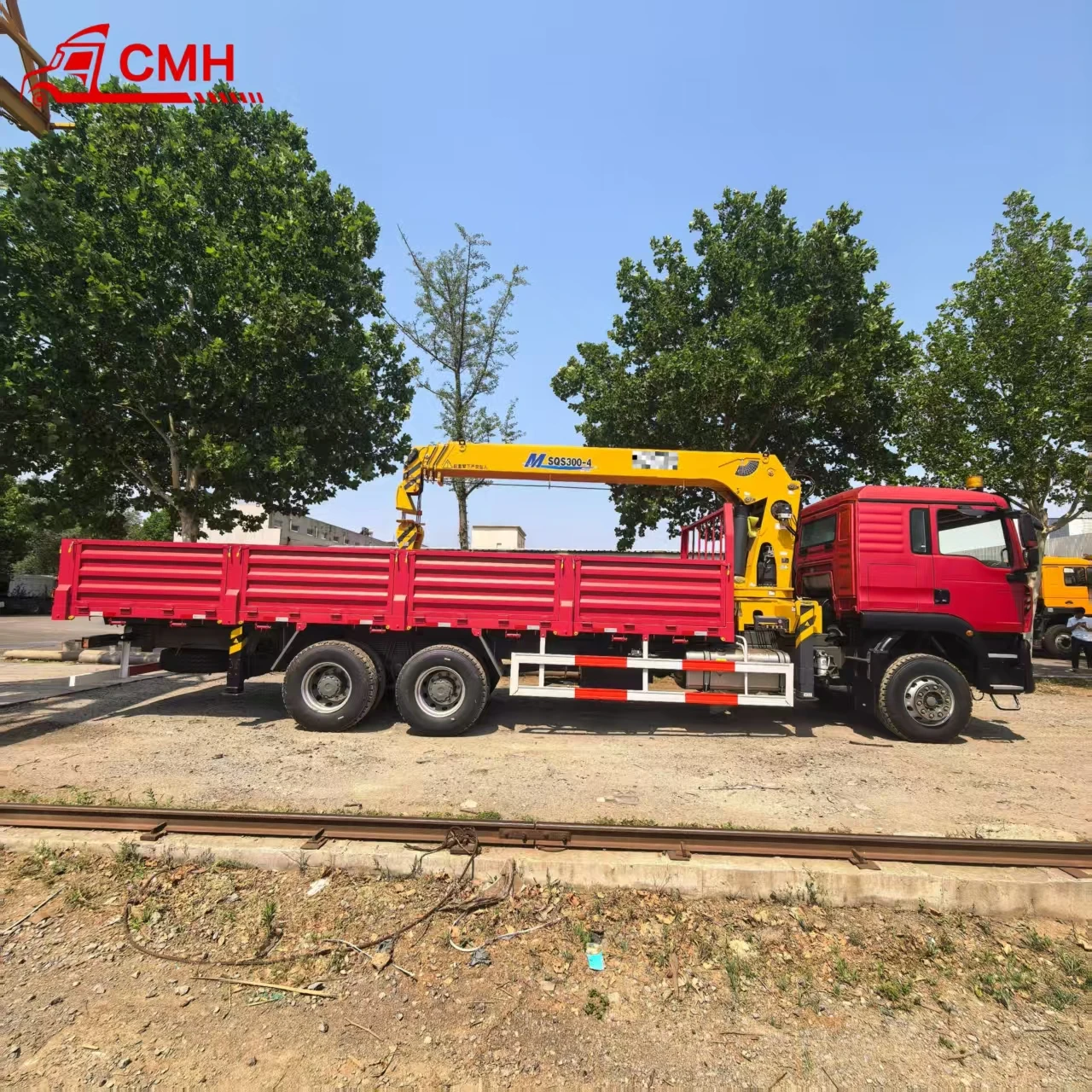

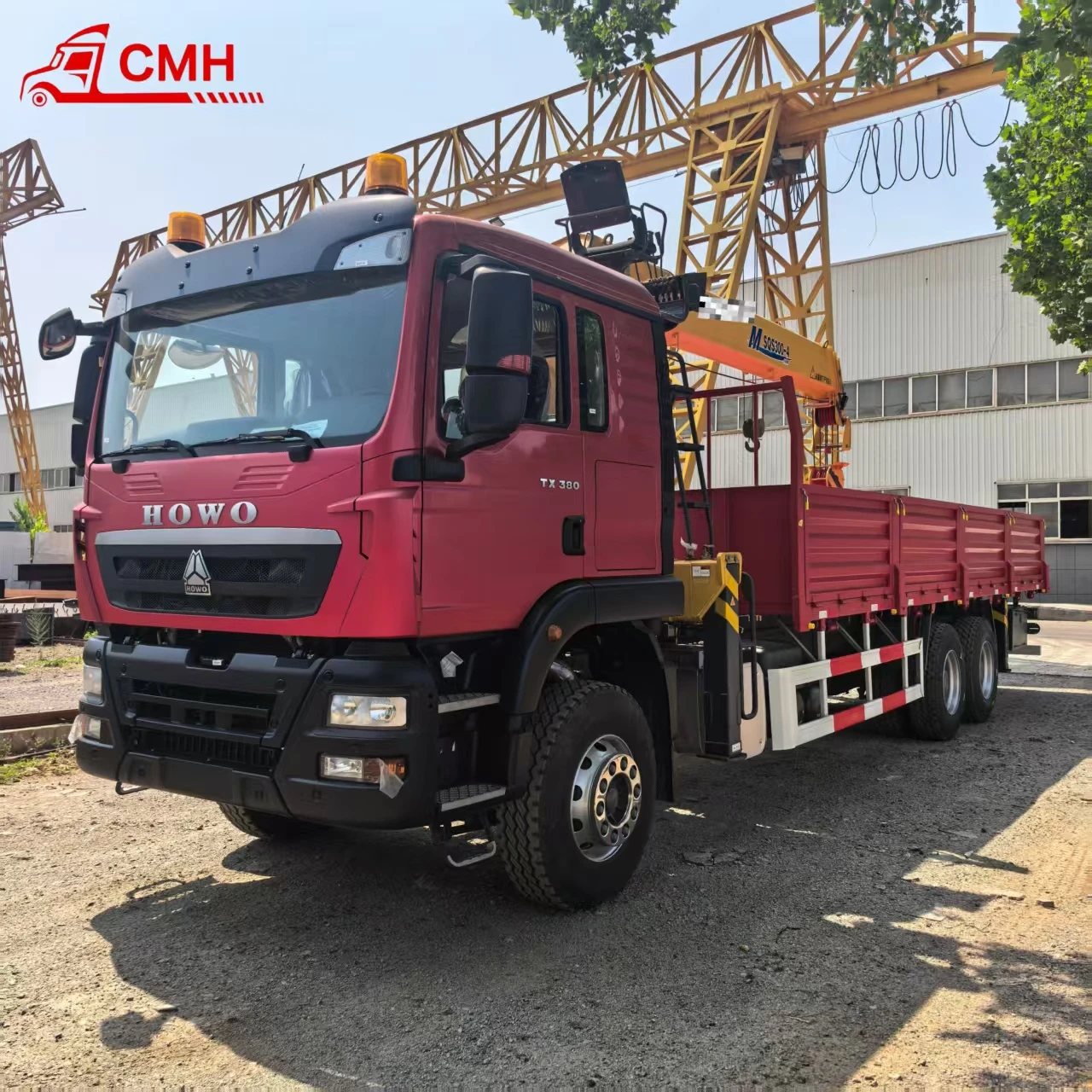

| Name | HOWO TX MOUNTED CRANE FENCE CAGRO TRUCK | |
| Drive type | 6X4 | |
| Kerb mass (kg) | 12500 | |
| Total mass(kg) | 25000 | |
| Max. speed (km/h) | 75 | |
| Min. turning circle (m) | 18 | |
| Approach/Departure(°) | 16/70 | |
| Max. gradeability (%) | 60 | |
| Appearance dimensions (mm) | 12000X2500X3450 | |
| Wheel base (mm) | 4600+1350 | |
| Overhang(front/rear) | 1500/725 | |
| Track width (mm) (front/rear) | 2022/2041 | |
| Engine | CNHTC Engine,1WD615.47,371hp E-II | |
| Rated output power | 309kw | |
| Torque(N.m r. p. m) | 1820/1100-1500 | |
| Displacement(L) | 9.726 | |
| Fuel tank capacity (L) | 400L | |

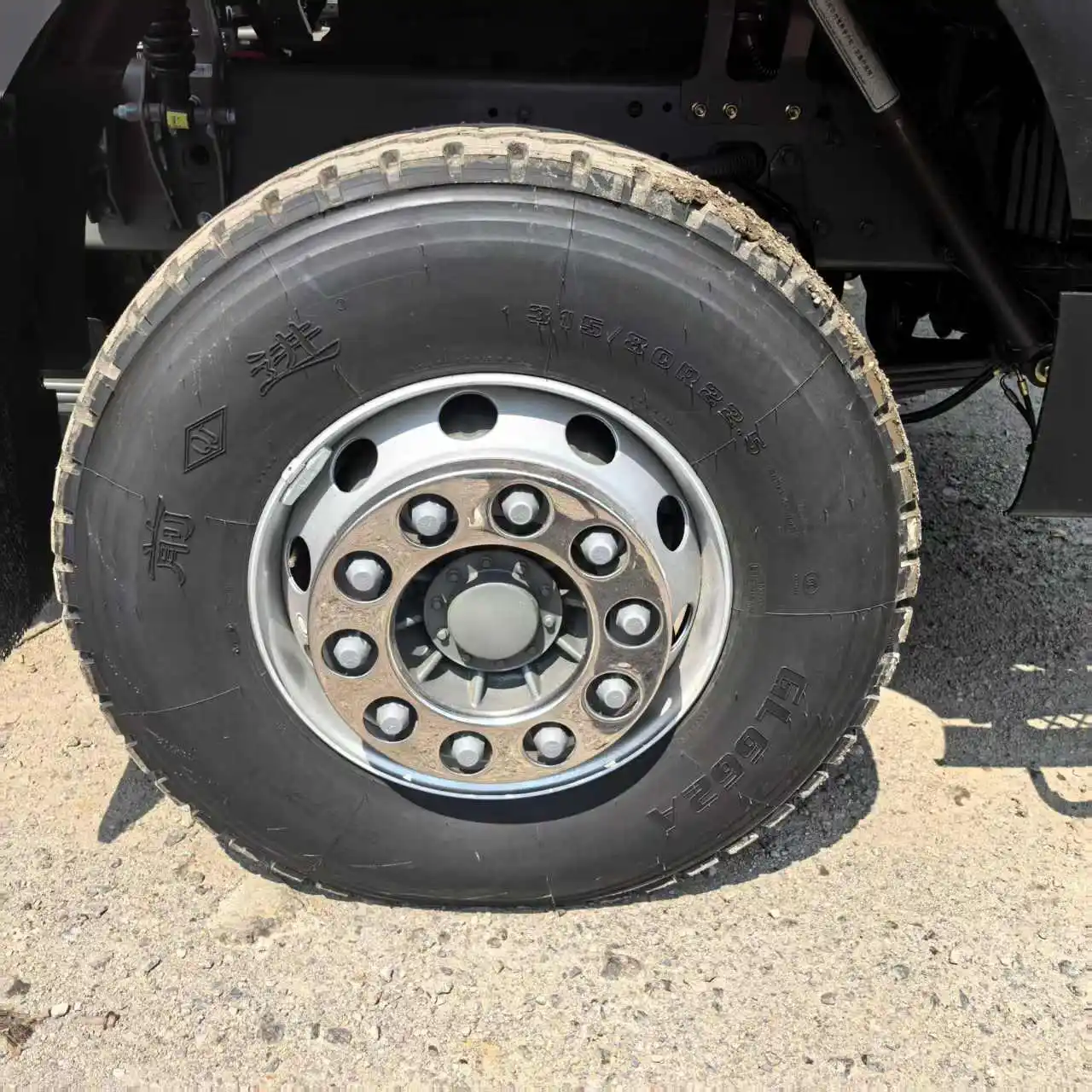

| Tyre: | 315/80R22.5 10+1pc | |
| Clutch | φ430 diaphragm spring | |
| Gearbox | Transmission | HW19710, 10 forward&2 reverse Manual |
| Front axle | HF9 | |
| Drive axle | HC16 ratio 4.8 | |
| Steering | ZF8118 (left-hand drive) | |
| Brake | Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on front & rear wheel | |
| Auxiliary brake | Engine exhaust valve brake | |

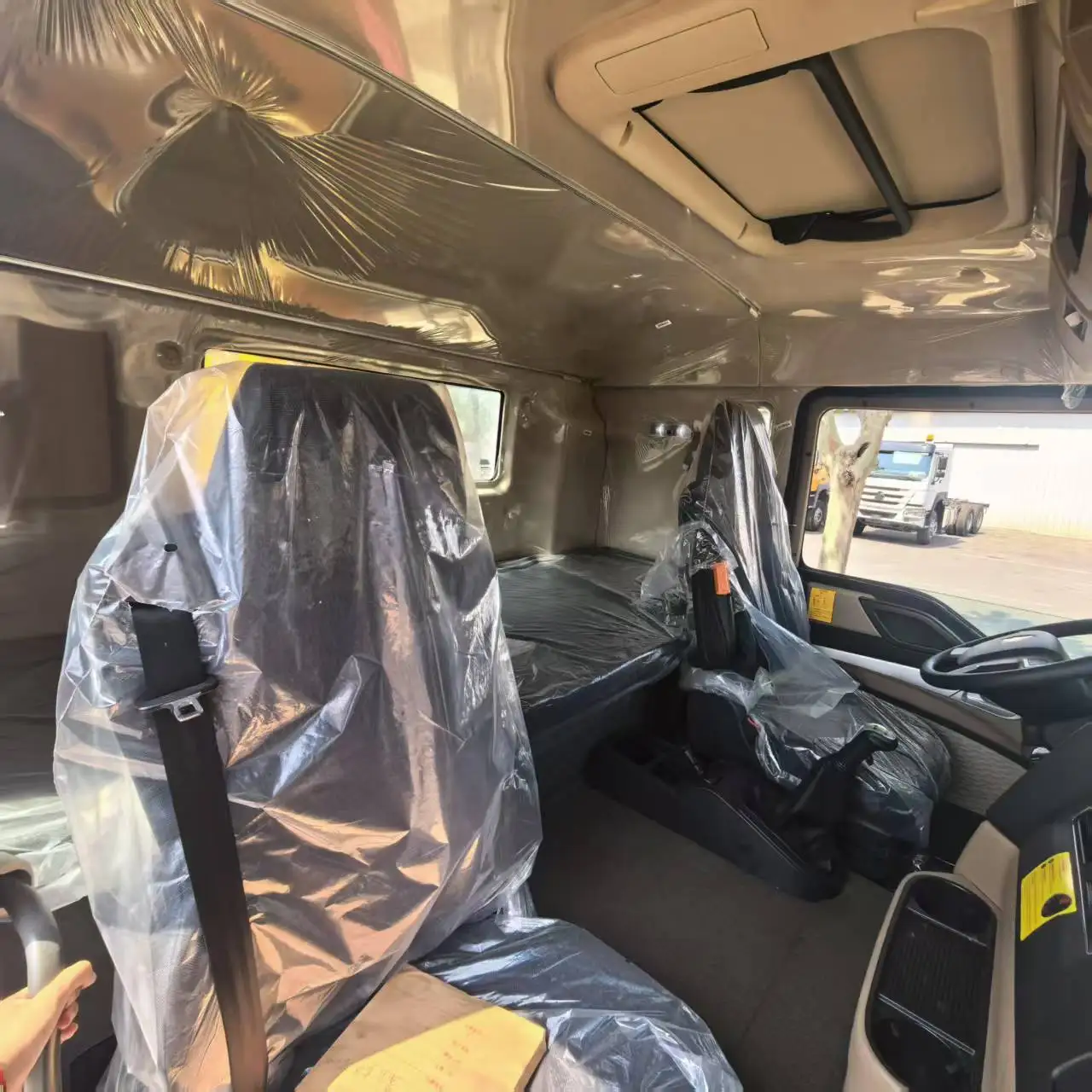

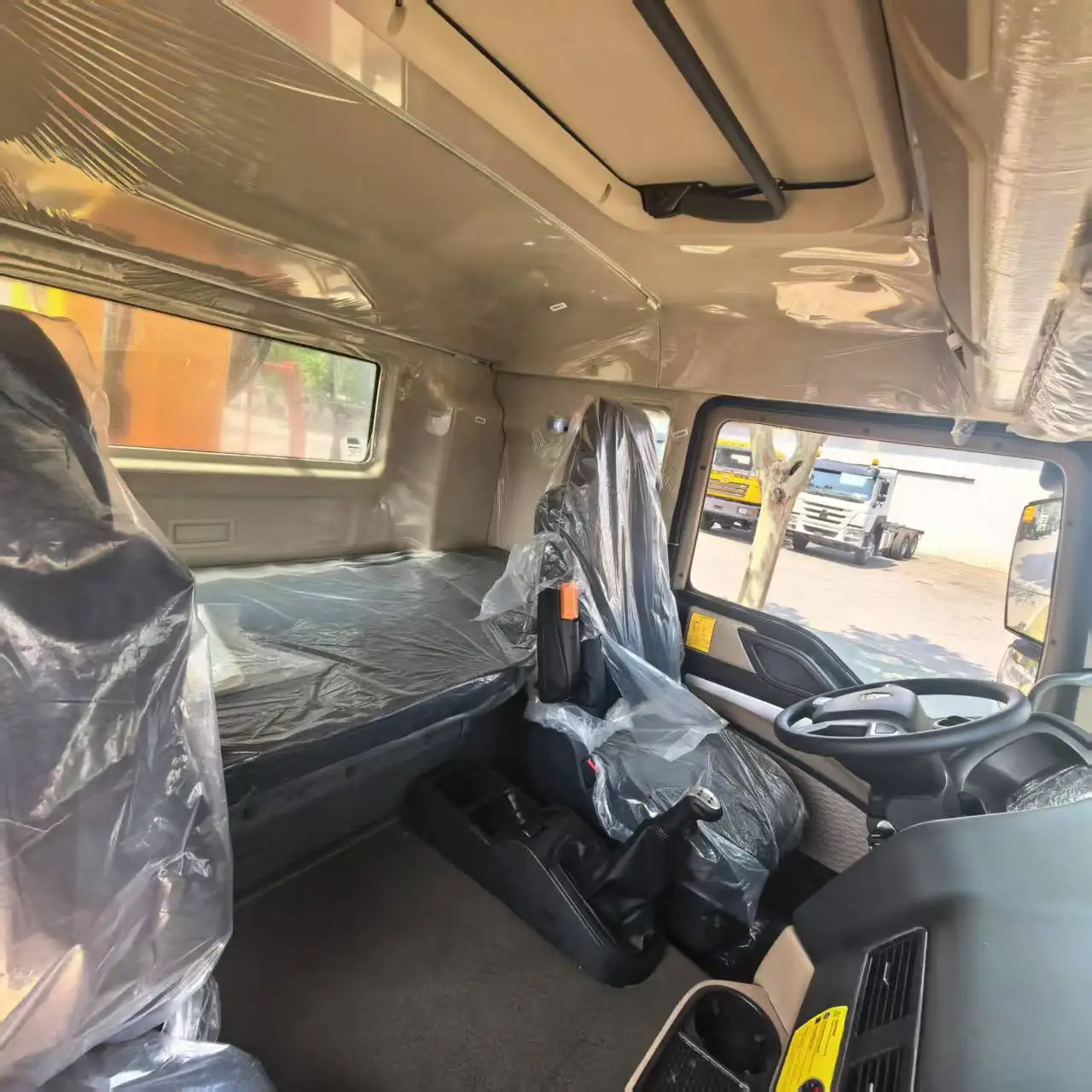

| Cab | HW76 Cab with Single sleeper A/C | |
| With Wind scooper and air guide sleeve | ||
| Battery | 165AH | |
| Cargo Carriage Internal Dimensions | 7200x2400x600(LxWxH)mm | |
| Steel thickness of Carriage: | Floor: 3mm, Side:1.5mm | |
| Crane | 12tons straight arm crane | |
| Delivery date | 40 working days after receiving the down payment. | |
| Item | UNIT | SQ2S1Q | SQ3.2S1Q | SQ5S2Q | SQ6.3S2Q | SQ8S3Q | SQ10S3Q | SQ12S3Q | SQ16S4Q |
| Max lifting Capacity | KG | 2100 | 3200 | 5000 | 6300 | 8000 | 10000 | 12000 | 1600 |
| Max lifting Moment | T.M | 4.2 | 6.8 | 12.5 | 15.7 | 20 | 25 | 30 | 43.2 |
| Recommend Power | KW | 9 | 14 | 18 | 20 | 27 | 30 | 30 | 41 |
| Oil Flow of Hydraulic System | L/min | 20 | 25 | 32 | 40 | 55 | 63 | 63 | 80 |
| Pressure of Hydraulic System | MPA | 16 | 20 | 20 | 20 | 27 | 26 | 26 | 28 |
| Oil Tank Capacity | L | 25 | 30 | 90 | 90 | 160 | 160 | 160 | 260 |
| Crane Weight | KG | 875 | 1105 | 2120 | 2160 | 3315 | 3765 | 4316 | 6455 |
| Installation Space | MM | 850 | 850 | 900 | 900 | 1200 | 1150 | 1300 | 1400 |
| Rotation Angle | 。 | 360 | |||||||
