Home > Products > TRUCK > DUMP TRUCK > HOWO DUMP TRUCK 6X4&6X6

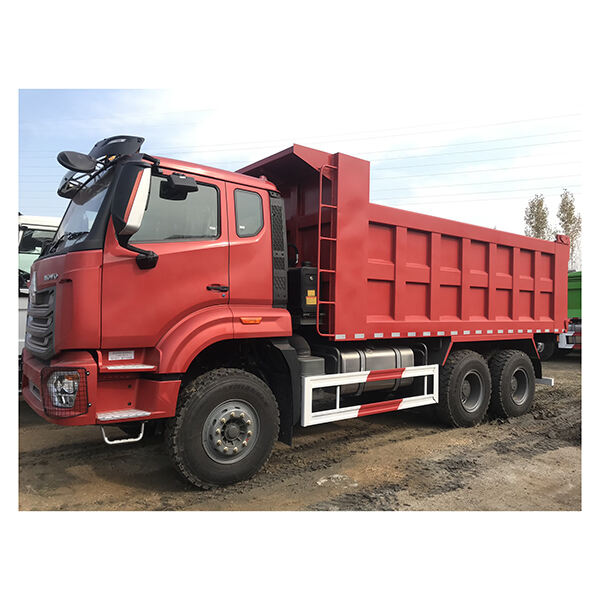

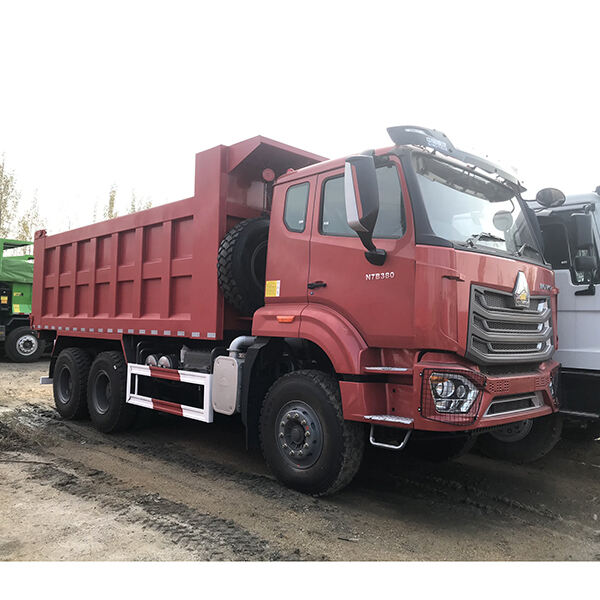

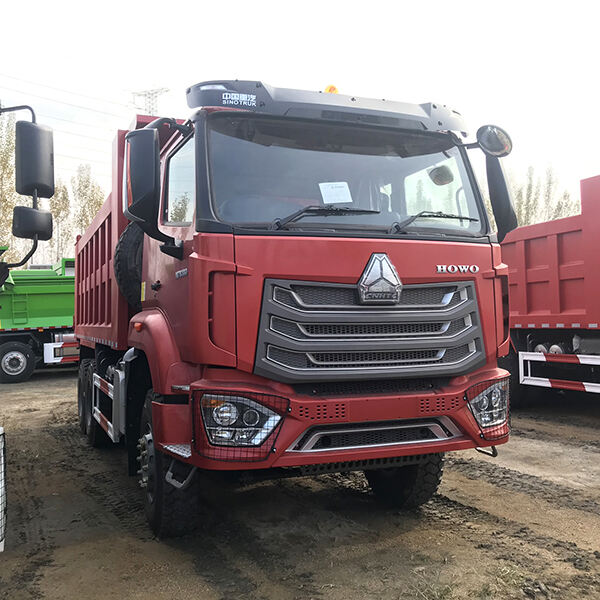

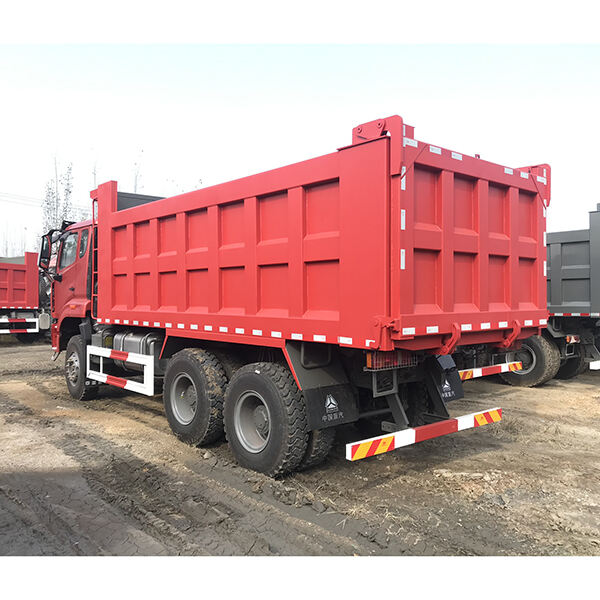

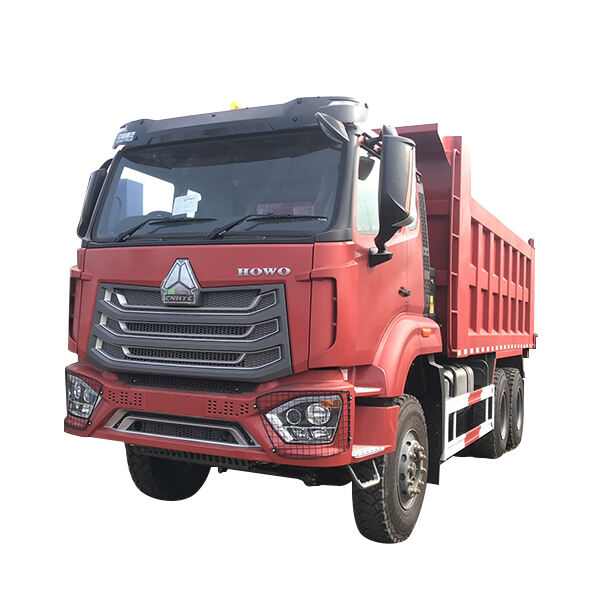

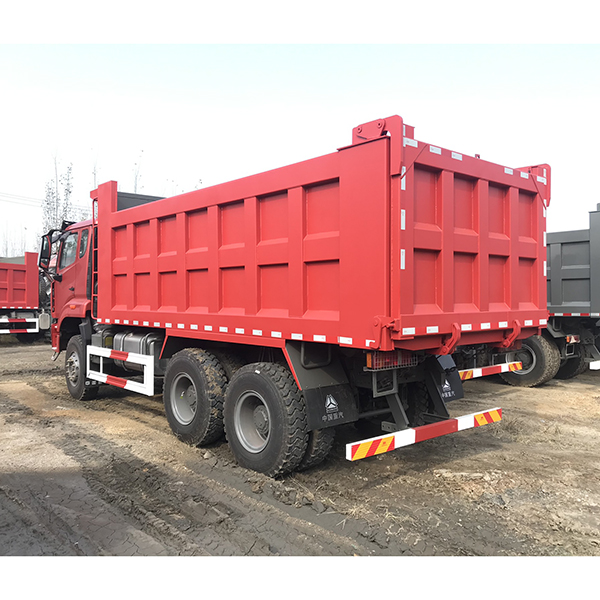

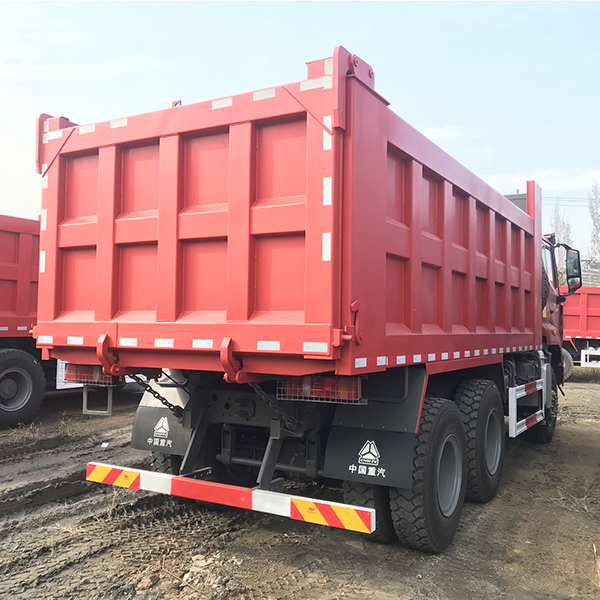

Model & Axel Configuration：HOWO NX 6x4 DUMP TRUCK
Body type：Heavy duty
Cabin：H77L,One Sleeper ,A/C,two seats,Mp3+radio
Product parameters
| TRUCK TYPE | FUEL TANK | ||||
|
Model & Axel Configuration |
HOWO NX 6x4 DUMP TRUCK | Tank size | 300L (400L is optional) | ||
| Tank material | Aluminium | ||||
| Body type | heavy duty | BATTERIES | |||
| Cabin | H77L,One Sleeper ,A/C,two seats,Mp3+radio | Type | Double Batteries | ||
| ENGINE | Capacity | 2×12/165 V/Ah | |||
| Model | WP12.400E201 /WP10.380E22 | Alternator | 28V/110A | ||
| Power | 400 HP@294KW /380HP@279KW | PERFORMANCE | |||
| Max Torque | 1920N.M@1200-1600rpm/1460N.M@1200-1600rpm | Max speed | 85Km/H | ||
| Displacement | 11.596 L /9.726L | Grad abiity | 35° | ||
| Bore & Stroke | 126x155mm/126x130 mm | Tuming Radius | 8.5M | ||
| Type | In-line six cylinder, water cooling, four stroke,turbocharged intercooled, and high pressure diesel pump | CHASSIS | |||
| Type | heavy duty multi layers frame | ||||
| Emissions | Euro Ⅱ,Euro Ⅲ,Euro Ⅳ | Thickness | 8 mm+8mm+5mm part in three layers | ||
| Exhaust | Standard Exhaust System with EVB | Tow hook | Equipped standard model | ||
| Air intake | Turbocharged | TIRES | Chinese Top brand Tires | ||
| TRANSMISSION | Tire size | 315/80R22.5 | |||
| Model | HW19710 (PTO optional) (9 gears and 12 gears optional) | Option | 12R22.5 ,13R22.5 or 12.00R20 | ||
| Type | Manual | No.of tires | 10+1 spare | ||
| Max Torgue | 1900N-M | DIMENSIONS | |||
| Gears | 10 forward & 2 reverse | Overall length | 8550mm | ||
| Clutch | φ430 Pul-type diaphragm spring clutch | Overall width | 2550mm | ||
| Speed Ratio | 14.284, 10.623, 7.871 ,5.876, 4.375, 3.265, 2.428, 1.799, 1.343, 1; R1:13.913, R2:3.18. | Wheelbase | 3400mm | ||
| Front Overhang | 1500mm | ||||
| AMT | No AMT version | Rear Overhang | 1800mm | ||
| Overall height | 3117mm | ||||
| STEERING | WEIGHT | ||||
| Model | Bosch 8118 (Germany brand ) | Kerb Weight | 13900Kg | ||
| Type | Hydraulic Ass.Steering | Max GCW | 30000Kg | ||
| Side | RHD (LHD optional) | ACCESSORIES | |||
| FRONT AXLE | Driver seat | mechanical seat, Safety belt for driver and co-driver,4kg extinguisher (air suspension driver seat is optional) | |||
| Model | VGD95 | ||||
| Capacity | 9500kgs | Reverse Alarm |
Equipped |
||
| Type | Drum braking steering axle | ||||
| REAR AXLE | |||||
| Model | HC16 hub-reduction heavy duty axle | ||||
| Capacity | 16000KGS*2 | A/V system | Radio+mp3+USB | ||
| Type | Drum braking, 5.73 | CARGO BOX | |||
| BRAKE SYSTEM | Inner size and thickness | 5600x2300x1500 mm,bottom in 8mm ,side wall in 6mm ,carbon steel,square shape(U shape is optional) other thickness is optional | |||
| Type | Wabco Braking System | Lifting system | Hydraulic cylinder middle lifting(front lifting optional) | ||
| ABS | none | Suspension | Front 10 leaf springs ,rear 12 leaf springs | ||
| Auxiliary Brake | Engine Exhaust Valve Brake | ||||
