| General information | |||
| Driving Type: | 6X4 | Model No. | ZZ1257V464JB1 |
| Loading weight: | 20 ton | Max speed: | 75km/h |
| Engine | |||
| Engine No: | WP10.380E22 | Cylinder No | 6 |
| Fuel type: | Diesel | Emission: | 9.726L |
| Emission standard: | Euro II | Horse power: | 380hp |
| Gearbox | |||
| Gearbox Model: | HW19710+HW70 | Transmission Type: | Manual |
| Forward: | 10 speed | Reverse: | 2 speed |
| Chassis and tire | |||
| Front axle: | VGD95 | Front axle loading: | 9000kg |
| Rear axle: | HC16 | Rear axle loading: | 16000kg |
| Tires | 315/80R22.5 | Tire quantity: | 11, with spare tire |
| (Medium heavy truck) mobile maintenance vehicle loading configuration list | ||||
| Serial number | name | translate | parameter | quantity |

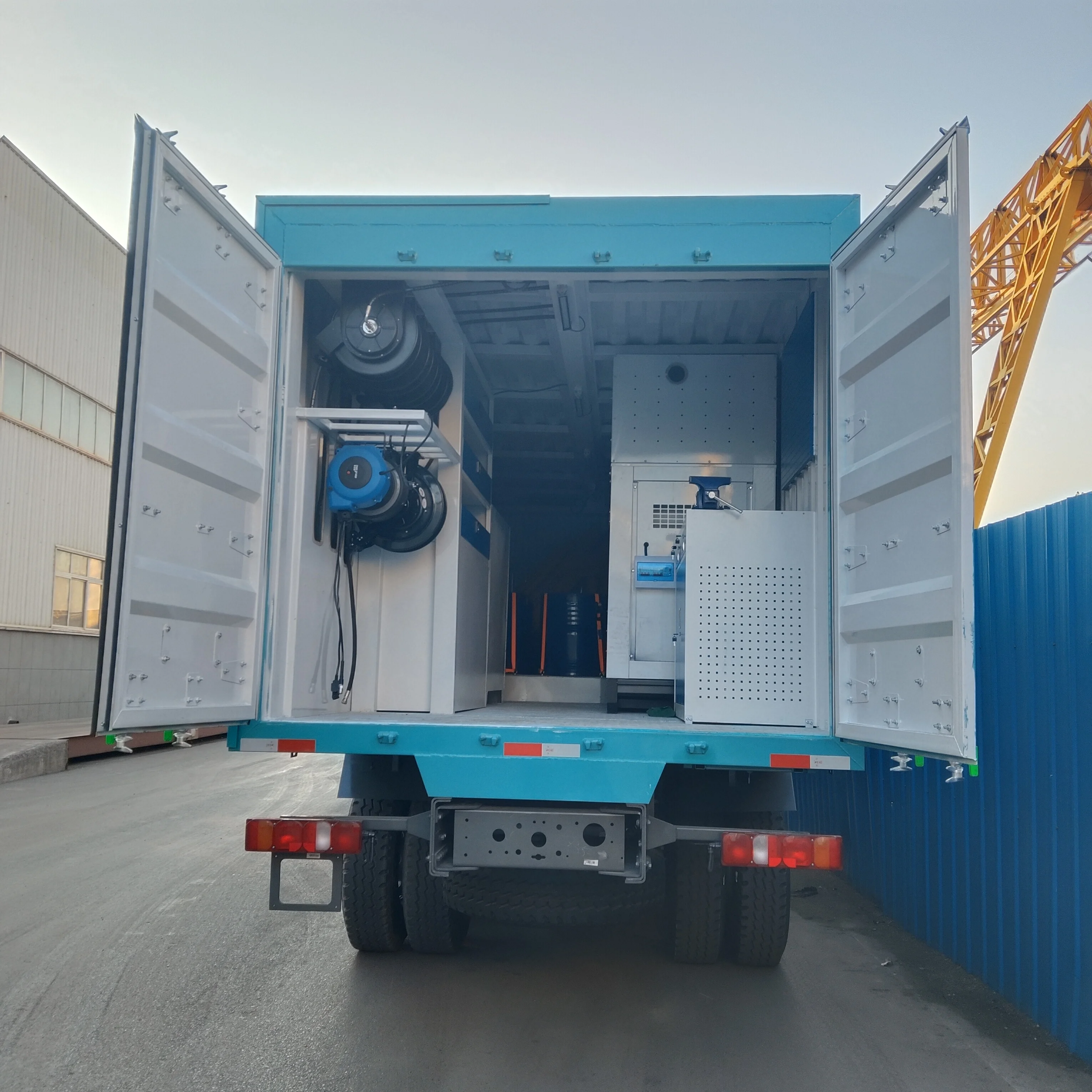

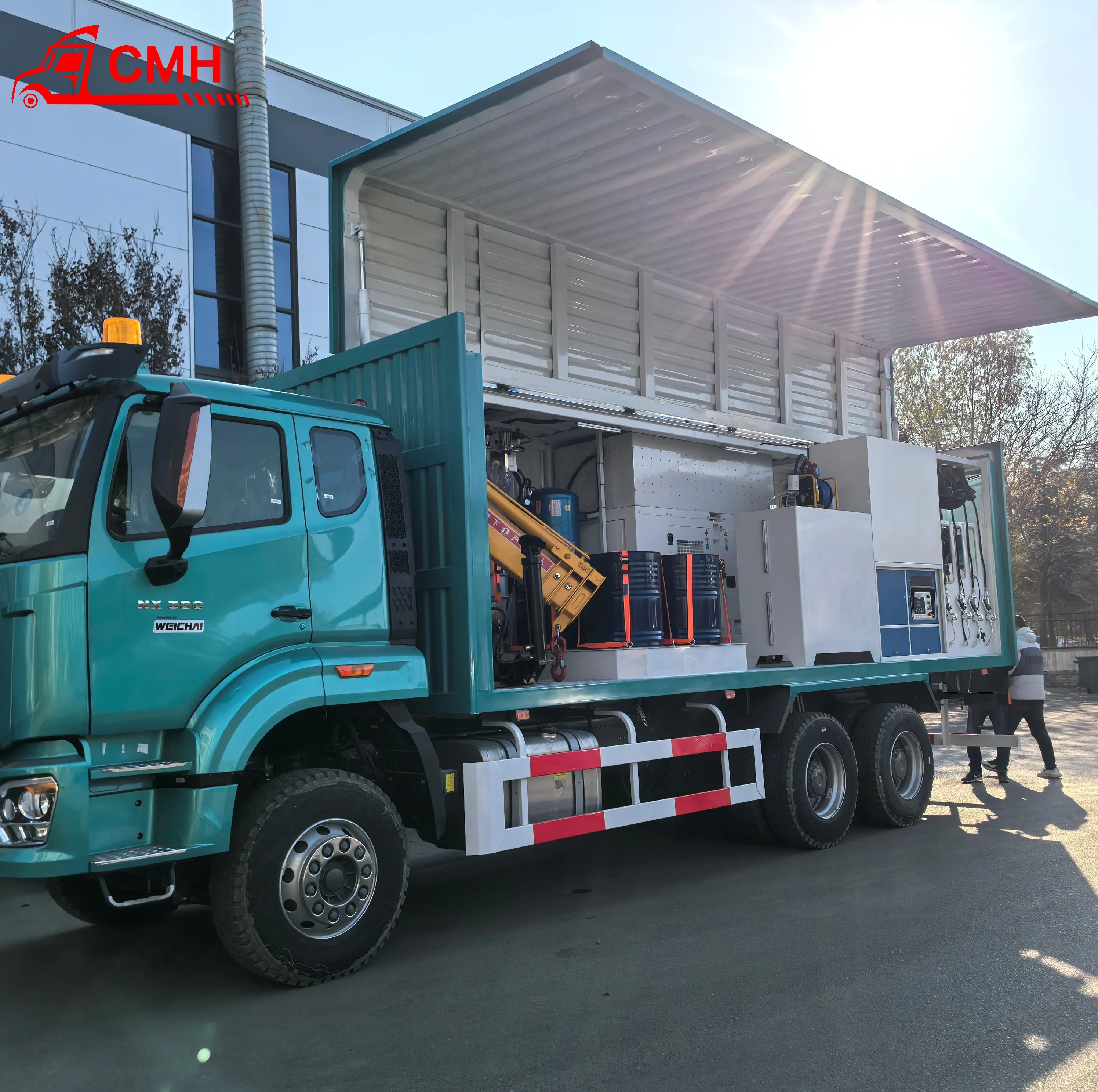

| 1 | customized cargo compartment | customized | cargo box : mint green. Cargo compartment for electrophoretic painting customized ized cargo compartment according to the actual | 1 |
| chassis drawings, size:7000*2400*2200mm, multi-form open goods box factory to do high-end anti-corrosion. | ||||

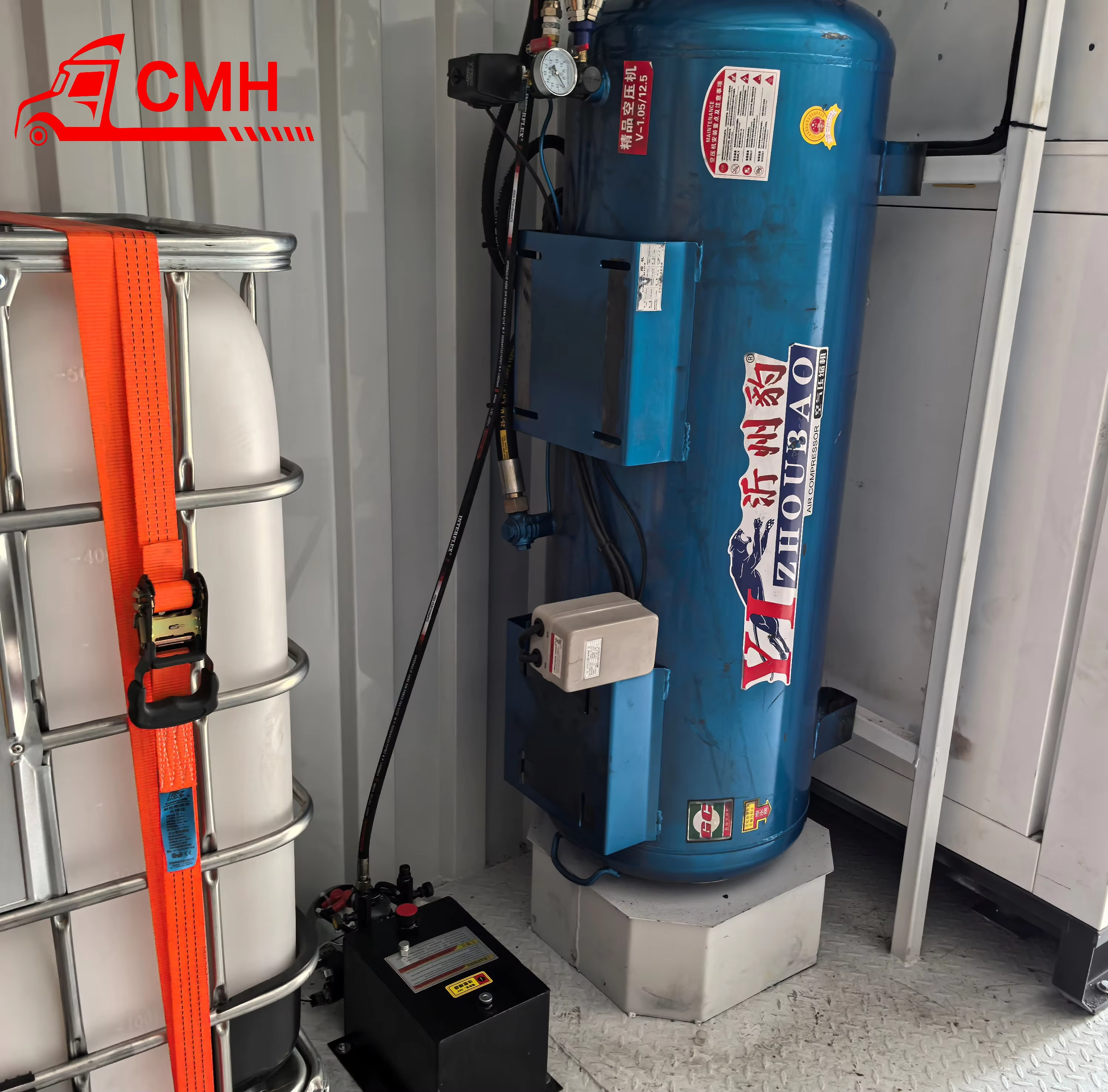

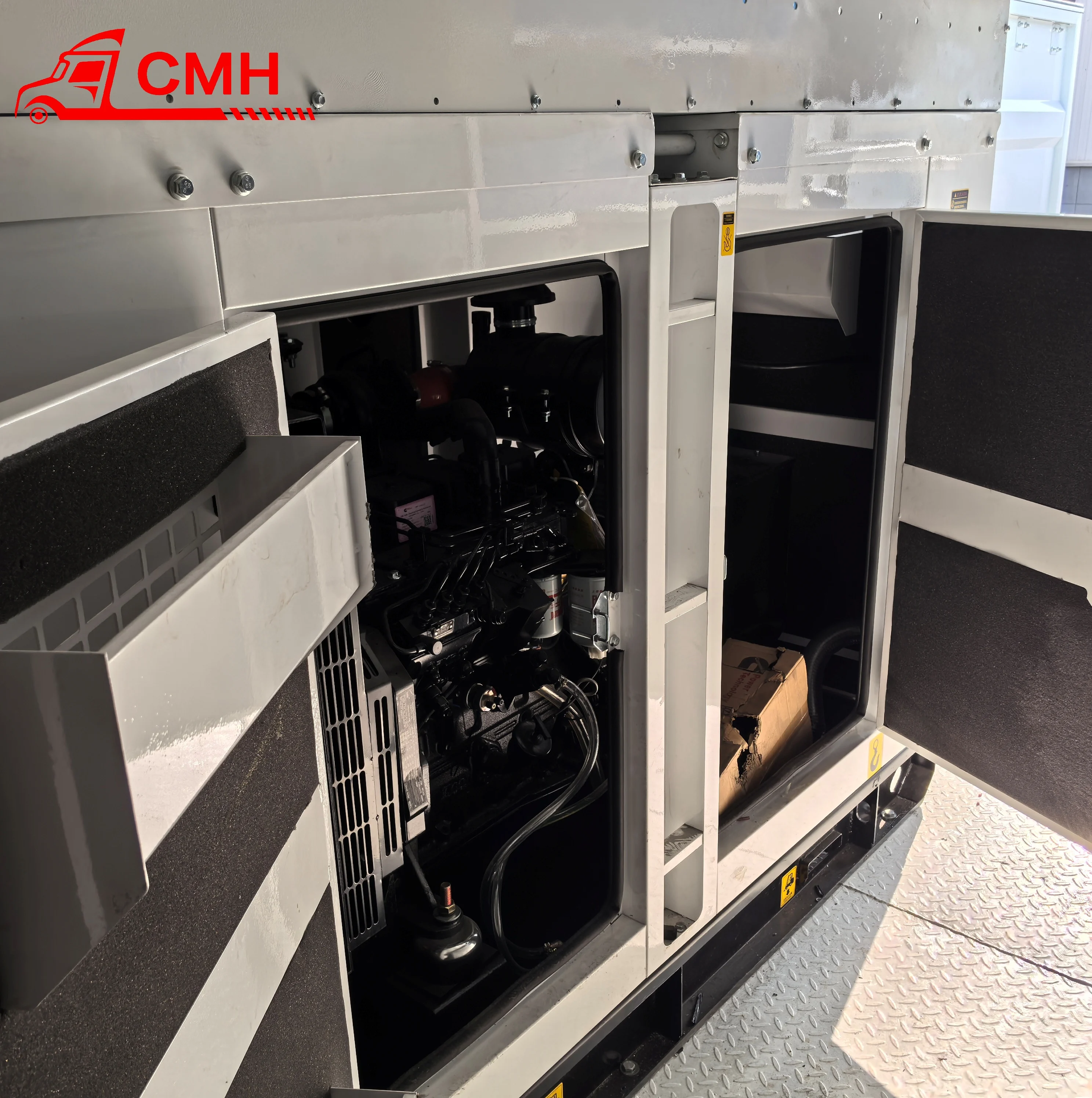

| 2 | Power generation air compressor | customized | Power supply: 220V; 380V | 1 |
| Power generation: 30KW Cummins engine (Euro Ⅱ) four cylinder with pure copper brushless motor, quiet model | ||||
| Air supply: 1.2-1.5Mpa | ||||

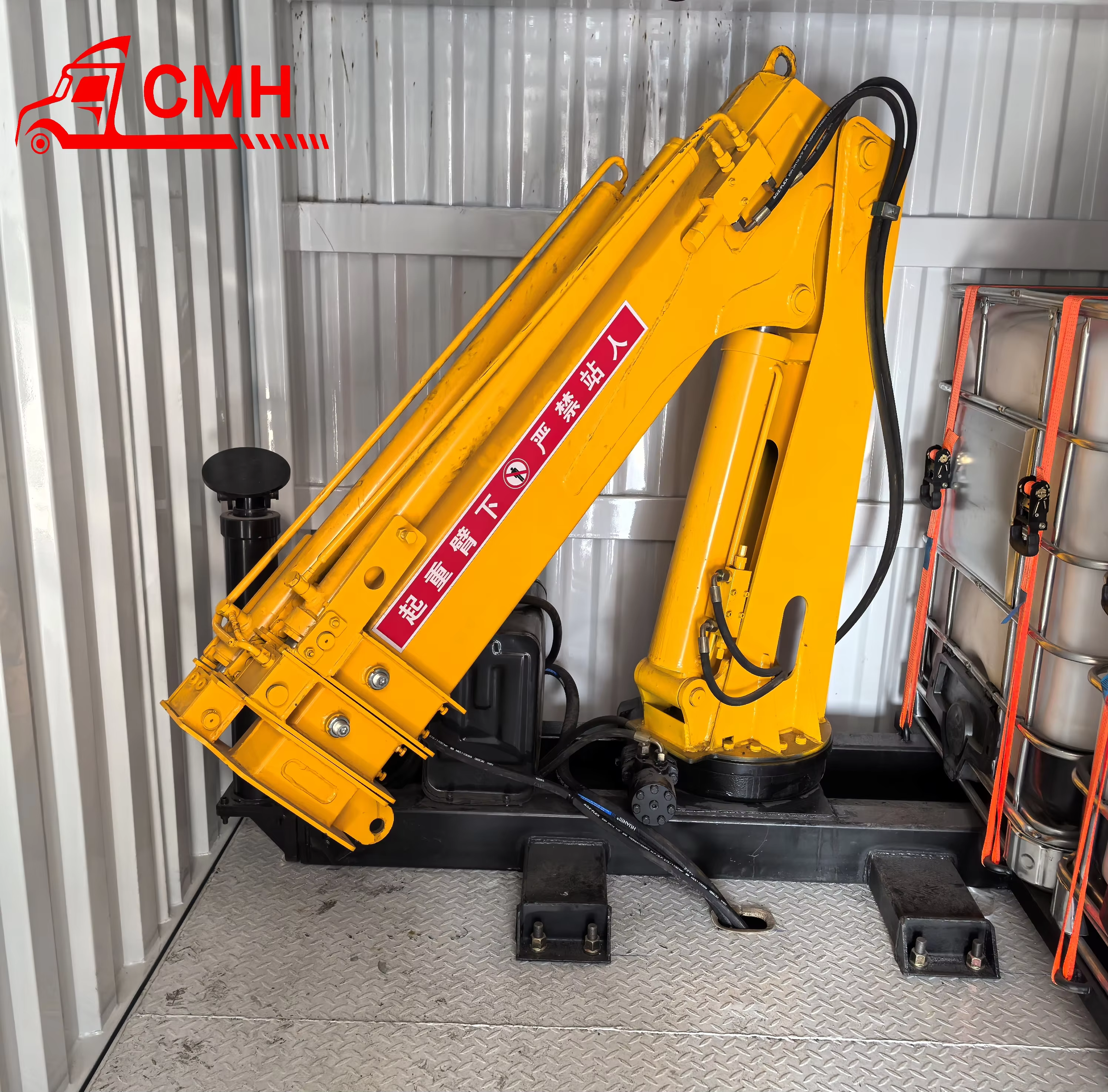

| 3 | customized crane | customized | Maximum lifting load :1100KG, the maximum lifting height is 3.5 meters from the ground, manual legs. | 1 |
| 4 | customized workbench | customized | Heavy duty, with bench vice, drawer | 1 |
| 5 | customized tool cabinet | customized | Number of floors: Four | 1 |
| 6 | Lubricating oil filling gun pump | air-operated | Ratio 5:1 pneumatic pump; With a refilling gun | 4 |
| 7 | Lubricating oil coil | customized | Pipeline: high pressure steel wire pipe; Length 15 m | 4 |
| 8 | air pipe winder | customized | Pipeline: high pressure steel wire pipe; Length 15 m | |
| 9 | customized oil storage tank | customized | Welded, fixed, single box volume 200L, for matching pump | 4 |
| 10 | water tank | customized | fixed,500L | 2 |
| 11 | diesel tank | customized | fixed,800L | 1 |
| 12 | welder ZX7-400 | JASIC | Voltage 380V, current 30-380A,35 square wire clamp 10 meters + ground clamp 5 meters | 1 |
| 13 | jetting machine | customized | 3KW jetting machine | 1 |
| 14 | power supply | customized | Lighting, and line switch control | 1 |
| 15 | floodlight | HUALU | 50W Engineering use | 1 |
| 16 | Automatic retractable electricity drum reel | Power delivery | 10m，autoshrink | 1 |
| 17 | Automatic retractable air drum reel | Air supply transport | 10m，autoshrink | 1 |
| 18 | floodlight | 24V | Overhead lighting working lights,4 | 1 |
