How to Choose the Right Trailer Semi Truck

Determine Your Cargo Capacity and Payload Requirements

Assess cargo type and characteristics for optimal trailer selection

Before choosing a trailer type, take stock of what needs to be moved. Think about how heavy it is, its size, whether it breaks easily, and if it has specific temperature requirements. Electronics that can crack or break should go in enclosed dry vans since these cut down on vibrations that might damage them. For things that spoil quickly, refrigerated units are a must have good climate control throughout the journey. Big machines that won't fit anywhere else travel best on flatbeds where the sides come off so they can be loaded securely. Grain transport gets better results with those sleek, wind-cutting designs, while tankers carrying liquids absolutely need those interior baffles inside to stop everything from sloshing around dangerously when moving down the road.

Calculate weight and volume to comply with gross vehicle weight limits

The basic math works like this: subtract the curb weight from the GVWR to get payload capacity. Take a semi truck as an example - if it has a GVWR rating of 52,000 pounds and sits at around 32,000 pounds when empty, that leaves roughly 20,000 pounds available for cargo. The Federal Motor Carrier Safety Administration reported back in 2023 that about one third of all roadside stops involve issues with how weight is distributed across vehicles. When loading freight, stacking vertically makes sense most of the time, but drivers need to keep an eye on those axle weights too. Legal requirements usually range between 12,000 and 20,000 pounds per axle group, though the exact numbers depend on how far apart the axles are spaced.

Understand legal axle weight limits and transportation regulations

The Federal Bridge Formula regulates maximum axle weights based on spacing. Tandem axles spaced 40—96 inches apart are limited to 34,000 lbs nationally. Non-compliance risks fines averaging $1,200 (USDOT 2024) and increases accident likelihood by 29%. For detailed route-specific rules—including restrictions in mountainous regions—refer to the 2024 Commercial Vehicle Size and Weight Guide.

Match trailer specs to route demands and road conditions

When dealing with rough terrain like gravel or dirt roads, it makes sense to go for trailers built with reinforced frames and those wider base tires that provide better stability. Cities with tight streets and lots of turns tend to work best with the shorter 48 foot models since they're just easier to handle around buildings and loading docks. Speaking of weather challenges, anyone operating in snow country should really consider getting ABS brakes along with those automatic tire chain systems. These features cut down stopping distances quite a bit, about 28 percent according to tests on ice covered roads. And if someone's running longer hauls across highways, adding those aerodynamic side skirts plus switching to aluminum wheels isn't just cosmetic either. Real world testing shows these modifications can actually improve fuel economy anywhere from 7 to 11 percent over regular setups, which adds up nicely over thousands of miles driven.

Compare Common Semi Trailer Types for Different Hauling Needs

Dry Van Trailers: Secure, Weather-Protected Transport for Standard Freight

The dry van trailer is basically a box on wheels, keeping everything safe from rain, snow, thieves, and those pesky rocks flying off other trucks. These things are perfect for shipping stuff like electronics boxes, household items, and food that doesn't go bad quickly. Most standard models measure around 53 feet long and can pack in about 3,800 cubic feet worth of goods, which just so happens to fit most warehouse loading areas pretty well. According to some industry numbers floating around from last year, these enclosed trailers account for roughly two thirds of all regular freight moving across country roads. Makes sense when you think about how adaptable they really are compared to other options out there.

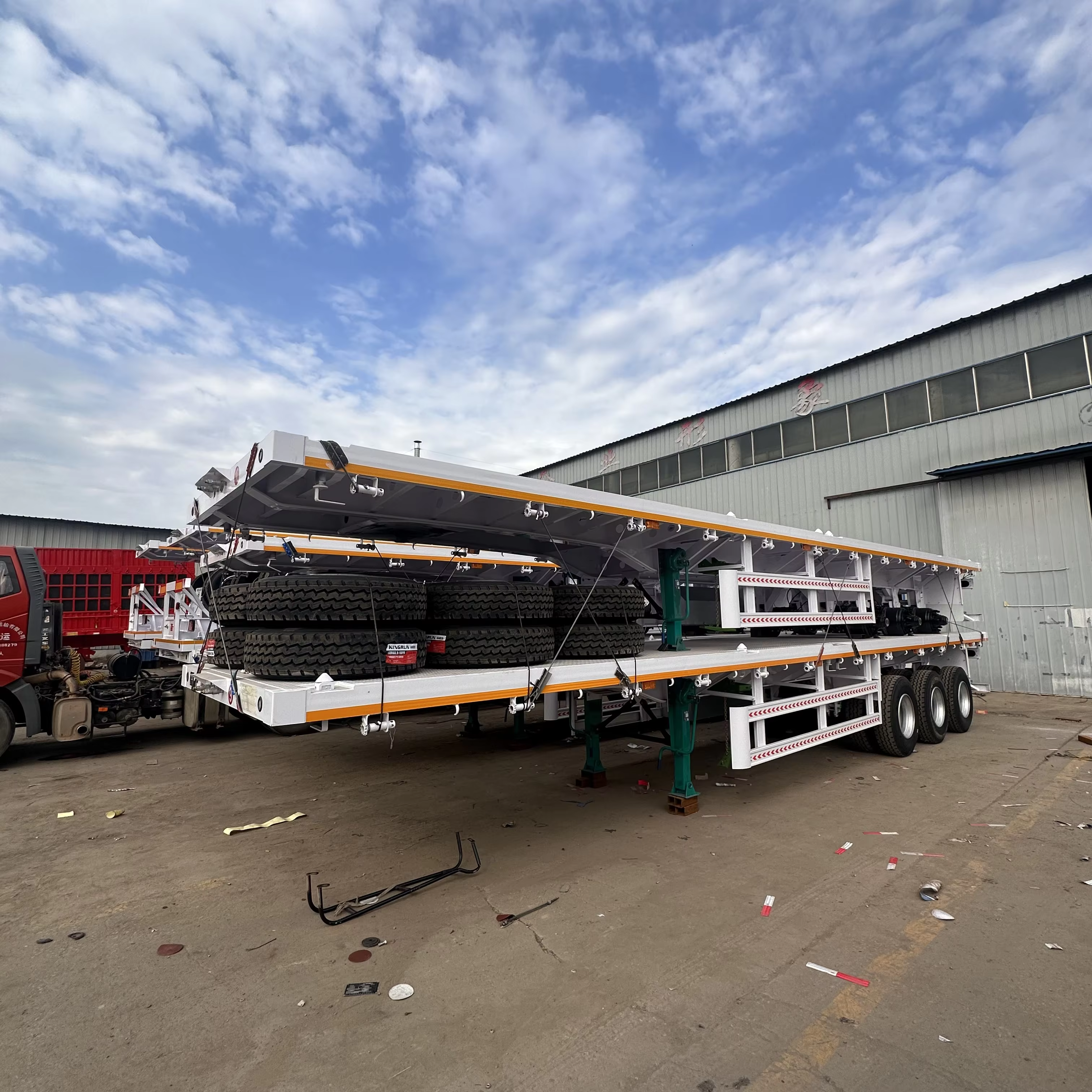

Flatbed Trailers: Versatility for Oversized or Irregular Loads

Flatbed trucks are great for hauling all sorts of big or awkward stuff that won't fit on regular trailers. Think steel beams, heavy construction gear, or those pre-made building sections they transport across country. The whole point of their open top design is so cranes and forklifts can get right in there from every direction when loading up the truck bed. Most flatbeds come with extra options too. Some have those side rails that can be taken off completely, others got stake pockets along the sides to hold down really wide cargo. These features make a big difference when trying to stay within legal limits. Without special permits, most states cap trailer widths at around 8 feet 6 inches, so proper securing becomes absolutely critical for both safety and compliance.

Refrigerated (Reefer) Trailers: Reliable Temperature Control for Perishables

Reefer trailers maintain temperatures between -20°F and 70°F (-29°C to 21°C), essential for shipping pharmaceuticals, frozen foods, and fresh produce. The USDA requires meat and dairy shipments to stay at or below 41°F (5°C)—a standard met through multi-zone controls and redundant cooling systems in modern reefers.

Specialized Trailers for Heavy Haul and Extended-Length Cargo

Lowboy trailers with 10+ axles support up to 150,000 lbs (68,000 kg), ideal for heavy industrial equipment like transformers. Extendable flatbeds transport wind turbine blades exceeding 100 feet (30.5 meters). These high-capacity units often feature hydraulic suspension, adjustable decks, and reinforced frames to ensure safety and compliance on permitted routes.

Ensure Compatibility Between Truck and Trailer Systems

Verify Fifth Wheel and Hitch Compatibility for Safe Coupling

The fifth wheel on the truck needs to match what kind of hitch is on the trailer. Take note that Class V hitches can handle over 20,000 pounds worth of cargo. Always check that the weight limits are at least 15 to 20 percent higher than what will actually be loaded. When parts like locking jaws or skid plates start showing wear and tear, there's a much bigger chance (around 60%) the trailer might come loose during sudden turns or stops. According to some research done last year looking at livestock transportation accidents, nearly a quarter of all cases where trailers separated happened because people didn't get the hitch classes right. That really shows why following those SAE J133 guidelines matters so much for safe towing.

Check Kingpin and Landing Gear Alignment to Prevent Towing Issues

For proper alignment, the trailer kingpin needs to sit completely inside the fifth wheel with no more than 1/8 inch side-to-side play to stop unwanted swaying. When setting up the landing gear, it's important they stand straight up from the pavement. Just a five degree angle can cut stability down by about thirty percent when loading cargo. Many technicians see misaligned trailers as a major problem causing around forty percent of early axle failures. The reason? Uneven weight distribution puts extra strain on different parts of the chassis frame as miles rack up on the road.

When evaluating a semi truck trailer for sale, prioritize models with ISO 7638-compliant electrical connectors and air brake gladhands to ensure seamless integration with your tractor unit.

Optimize Axle Configuration and Weight Distribution

How Axle Setup Affects Load Stability and Regulatory Compliance

Axle configuration directly impacts load stability and adherence to federal weight laws. Under the Federal Bridge Formula, a 53-foot trailer with three axles can legally carry up to 48,000 lbs (DOT 2023). Improper spacing raises rollover risk by 22%, according to NHTSA crash data, and may result in citations during inspections.

Balance Weight Across Axles to Avoid Overloading and Reduce Wear

The 60/40 weight distribution works best when loading trailers. Put about 60 percent of the total weight on the front part of the trailer, leaving around 40 percent for the back section. Doing this cuts down on those frustrating instances where tires wear out unevenly, something studies show happens roughly 18% less often with proper balancing. Plus nobody wants to deal with overweight tickets that typically cost around two thousand three hundred bucks each time they get caught (according to FMCSA data from last year). Many newer trucks now come with built-in digital scales so drivers can check how much weight sits on each set of wheels while still at the loading dock. This makes it easier to adjust things before hitting the road and staying within legal limits.

Case Study: Improving Fuel Efficiency and Tire Life Through Proper Spacing

A Midwest fleet reduced annual maintenance costs by $74,000 after adjusting 53-foot trailers from 48" to 51" axle spacing. The change:
✔ Increased fuel efficiency by 12% due to reduced aerodynamic drag
✔ Extended tire lifespan by 9 months
✔ Eliminated 91% of overweight citations

For maximum adaptability, choose trailers with adjustable axle systems that support both varying cargo types and regional regulatory requirements when purchasing a semi truck trailer for sale.

Evaluate Trailer Length and Dimensions for Capacity and Maneuverability

Selecting a semi truck trailer for sale requires balancing cargo capacity against operational constraints. Larger trailers increase volume but may hinder navigation in dense urban areas or confined job sites.

Impact of Trailer Length on Turning Radius and Urban Accessibility

The standard 53 foot trailer comes with a turning radius over 45 feet, about what fits into one and a half highway lanes, so making those tight city turns becomes pretty challenging. Many regional trucking companies have started going with the smaller 28 foot pup trailers instead. These cut down on turning radius by around 32 percent without sacrificing much cargo space at all, still giving drivers access to roughly 2300 cubic feet inside. According to recent research from the National Transportation Institute back in 2023, grocery delivery services that switched to these shorter trailers saw their urban deliveries speed up by approximately 18 percent across major metropolitan regions.

Maximize Cargo Space Within Legal Size Restrictions

Dimension	Legal Limit	Optimal Utilization Tip
Height	13’6’	Stack pallets vertically <8’11’
Width	8’6’	Use 48’ pallets with 6’ aisles
Length	53’	Load 26 standard pallets tandem
Weight	45,000 lbs	Front-load 60% to balance axles

Lightweight freight operators often pair spread-axle setups with 53-foot box trailers to maximize cube utilization while staying 9% under federal weight limits. This strategy enables full trailer use across 80% of interstate routes without requiring special permits.
