MODEL: ZZ3317N3567N1B
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 13R22.5
CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system (Other sizes are optional)
DRIVER CAB:
Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, 2 warming light
DIMENSIONS(in mm):
Wheel base (mm): 3800+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/2295
Approach angle(°):19
Departure angle(°):20
Overall Dimension (mm):9745x2496x3550
WEIGHT(in kg):
Permissible loading capacity (kg):13000
Dead weight (kg):12500
Gross vehicle weight (kg):25000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
PERFORMANCE:
Maximum driving speed(km/h):75(reference data)
Maximum gradeability (%):36
Minimum ground clearance(mm):314
Minimum turning radius (m):15
Fuel consumption(L/100km):40(reference data)

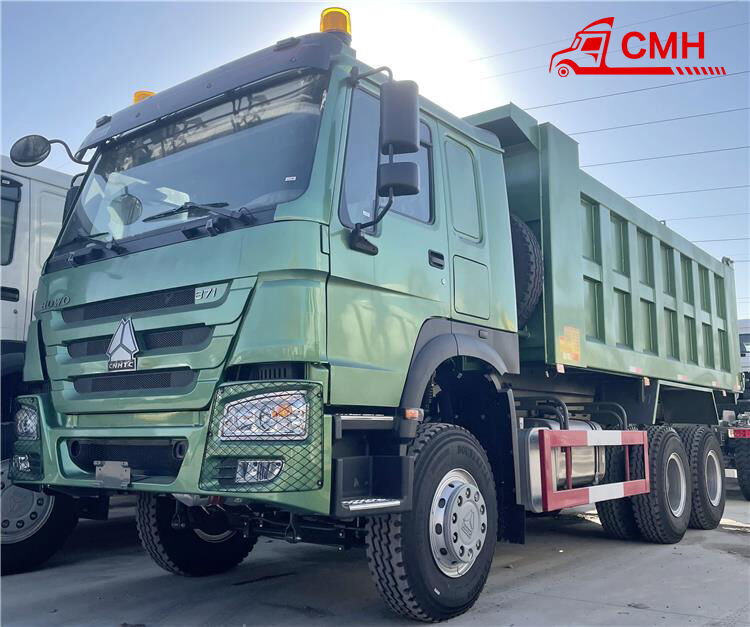

Sinotruk Howo 371 10 Wheel Tipper Truck
Sinotruk Howo 371 10 Wheel Tipper Truck
COMPANY ADVANTAGES:
| 1 | Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
| 2 | Expert in kinds of heavy trucks and spare parts. |
| 3 | Personalized customization to meet your working requirements. |
| 4 | High quality of Original parts & OEM services. |
| 5 | Engineers and experts on call for pre/after sale support. |
| 6 | One-stop service with heavy trucks, parts as well as stand-by advice & support. |
Profile of our company:
JINAN CMHAN TRUCK SALES CO.,LTD. is authorized truck dealer by China National Heavy Duty Truck Group Co., Ltd (CNHTC) in Shandong Province. It was founded in 2023, located in Jinan which is the famous production base of heavy duty truck in China. The 4 main functions of our company are truck&machinery&trailer sale, spare part supply, information feedback, and after-sales service.
The team of our company could provide all kinds of trucks and buses meeting the requirement of customers with the best price. We have many years of experience in supplying trucks,buses,trailers, strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional box packing, professional and reliable loading goods in containers, on-time delivery and competitive price.
Products of our company are sold all over China, and are exported to more than Eighty countries and regions such as Guinea, Nigeria, Benin, Central Africa, Mongolia , DRC, Mauritania, Ghana, Benin, Angola, Tanzania, Congo, South east Asia and Latin America. In a control of price and quality, our products are highly appreciated in these markets.
FAQ
Q:HOW CAN YOU INSURE MY MONEY BE SAFE?
A:Firstly you can send the money via trade assurances,Secondly We have worked in the field of truck sale for many years,and we have served thousands of buyer all over the world,We take the reputation as our life.we won’t deduct any money if the business break down in the end.
Q:WHAT’S YOUR MOQ AND DELIVERY TIME?
A:Usually,our MOQ is 1 sets,and our delivery time is within 30days for new placed order, and for stocked trucks our lead time is within 5 workdays.
Q:CAN I CHOOSE THE TRANSPORTATION METHOD BY MYSELF?
A:Yes,of course.But if CIF, you choose a different ships,that means the price will be different,(the price of bulk cargo ship is different from RO-RO ship )so the price will be changed,please notice that.
Q:DO YOU SUPPLY SPEAR PARTS?
A:Yes,we can provide all parts of the truck,like engine parts,electric parts,truck body parts and truck cabin parts.
Q:HOW CAN WE GET AFTER SALE SERVICE ?
A:We SINOTRUK Group has many overseas after sale service center, you can get services in these center,Also we can provide you technical support and parts supply,.
HOW TO CONTACT YOU DIRECTLY?
NAME:NICK SMITH
POSITION: INTERNATIONAL TRADE D.P. MANAGER
TEL&WHATSAPP.:+86 18678655109
Email:[email protected]
Website:www.cmhtruck.com
Whatsapp&wechat&viber&imo&tango&line&zoom account all same as cellphone number.You can add my number in your number list in your cellphone,Then talk to me directly via these talking tools.
