| SPECIFICATION | |
| 3 AXLE LOWBED SEMI TRAILER 75Ton capacity | |
| DIMENSIONS | |
| Tare weight | 9500kg |
| Size | 13000mm* 2550mm* 3400mm（With climb ladder） |
| Payload | 75T |
| Main beam | Heavy duty and extra durability designed I beam ; opting for high strength steel HG60, welded by automatic submerged-Arc processes. Top flange 20mm ,width140mm; Middle Flange 12mm height 500mm; bottom flange20mm,width 140mm |
| Floor | 5 mm checkered plate 4mm |
| Axle | 3 axle Chinese brand Axle 13T , 16T brake pad |
| Suspension | Hard-wearing steel spring,Mechanical suspension American type local brand 10pcs*90*13mm |
| Tire | 8.25R20 12pcs |
| Wheel rim | 9.00-22.5 China brand 12pcs |
| Kingpin | 2.0” bolt-in king pin 50# |
| Landing gear | JOST C200,Two-speed, manual operating ,heavy duty landing gear 28T |
| Ladder | Mechanical ladder |
| Braking system | WABCO emergency relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional/ without |
| Lights | LED lights |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anti-corrosive prime,2coats of final paint |
| Accessories | 2 spare tire carrier ,1 Tool box . |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |

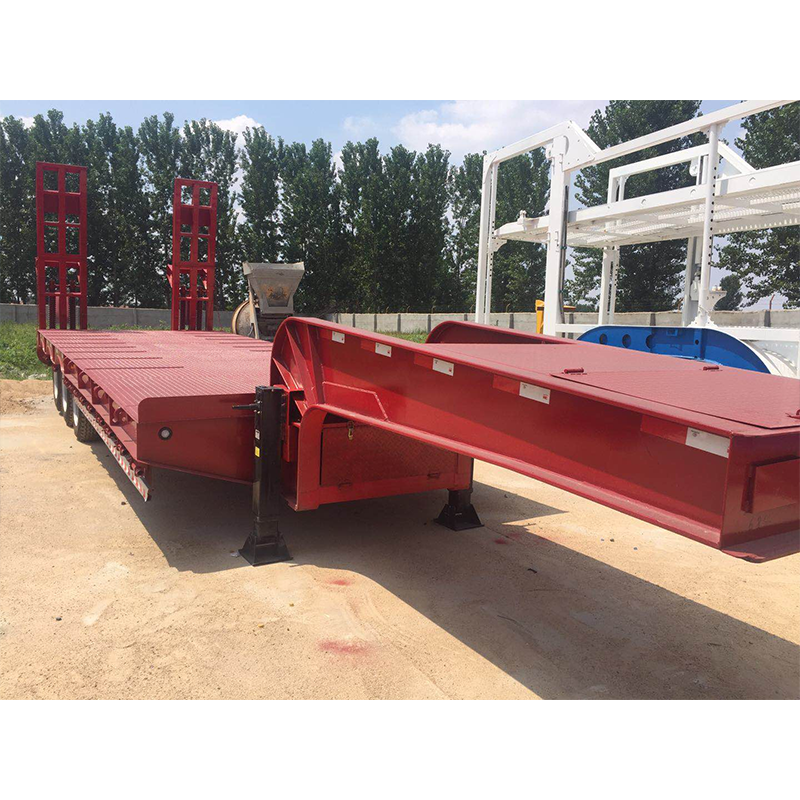

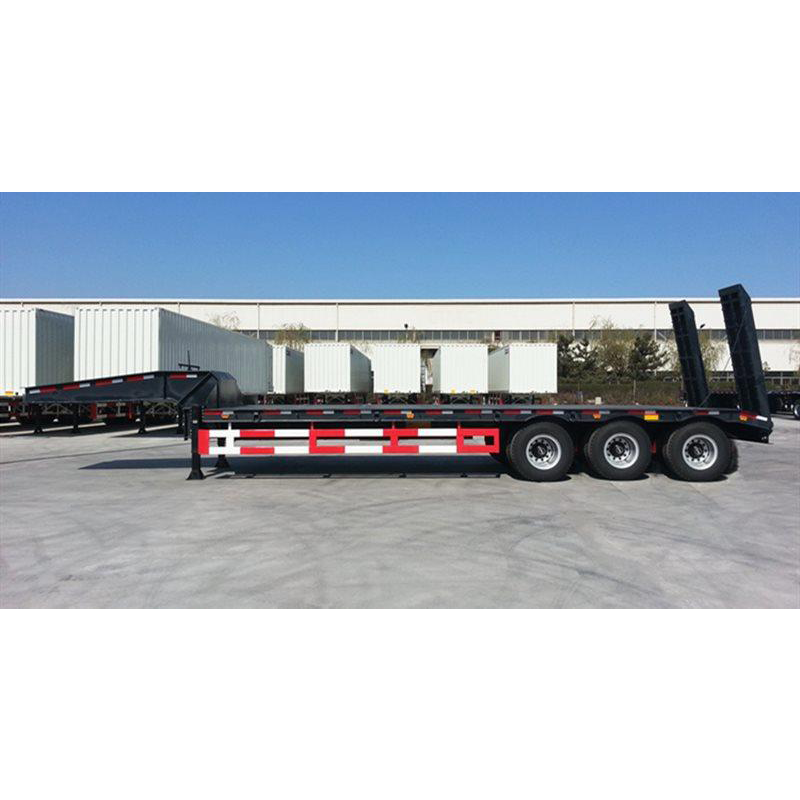

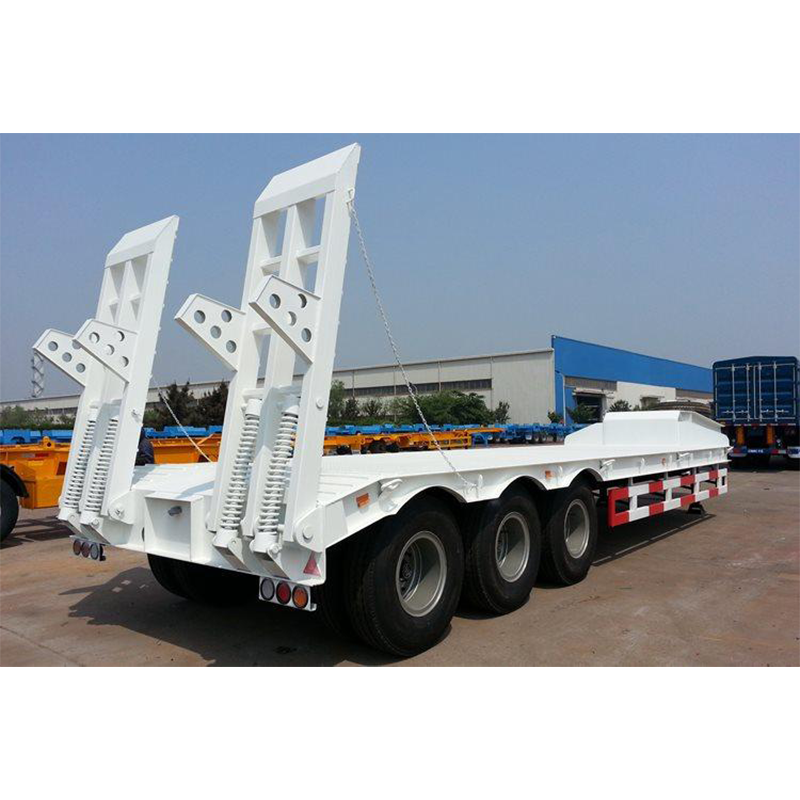

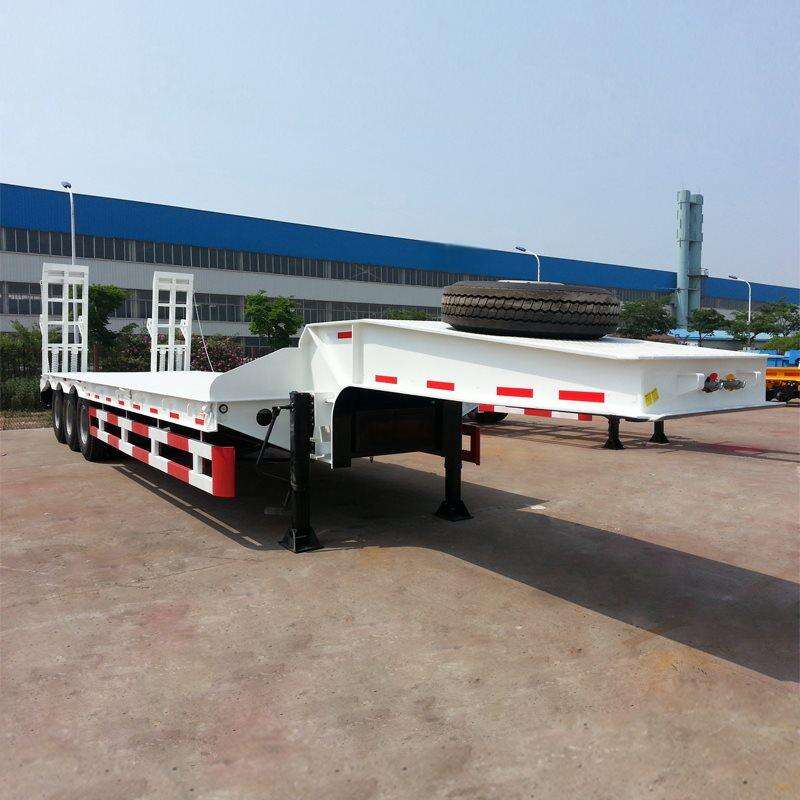

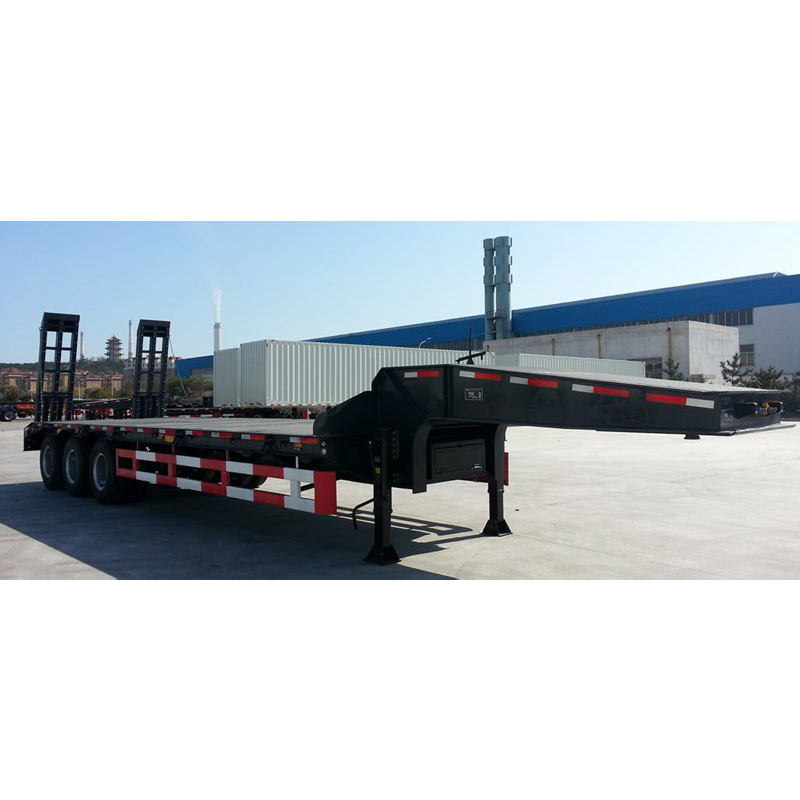

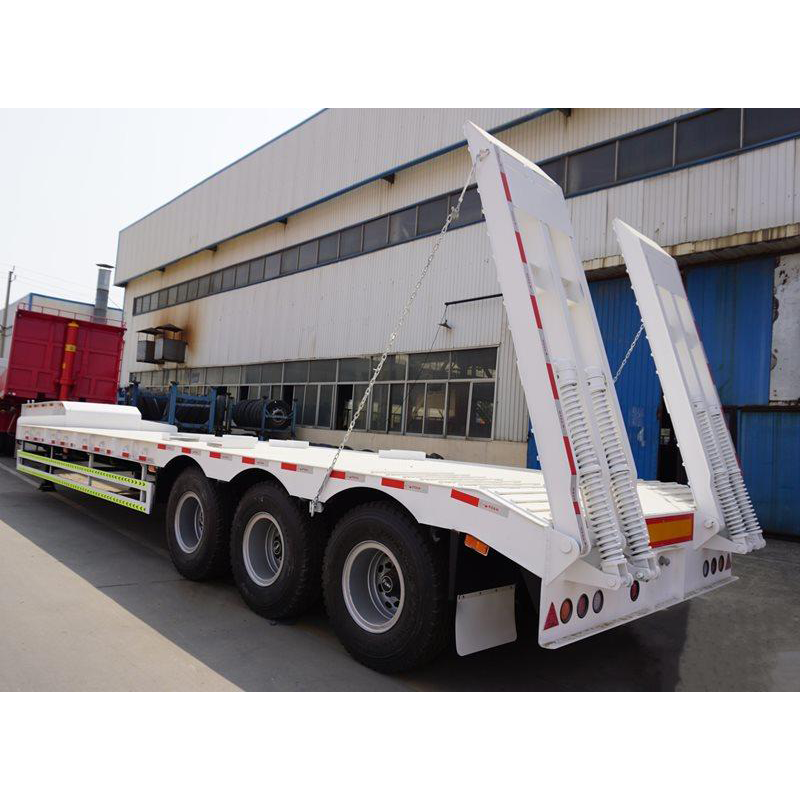

Reference photos
