| TRUCK TYPE | FUEL TANK | ||||
| Model & Axel Configuration |

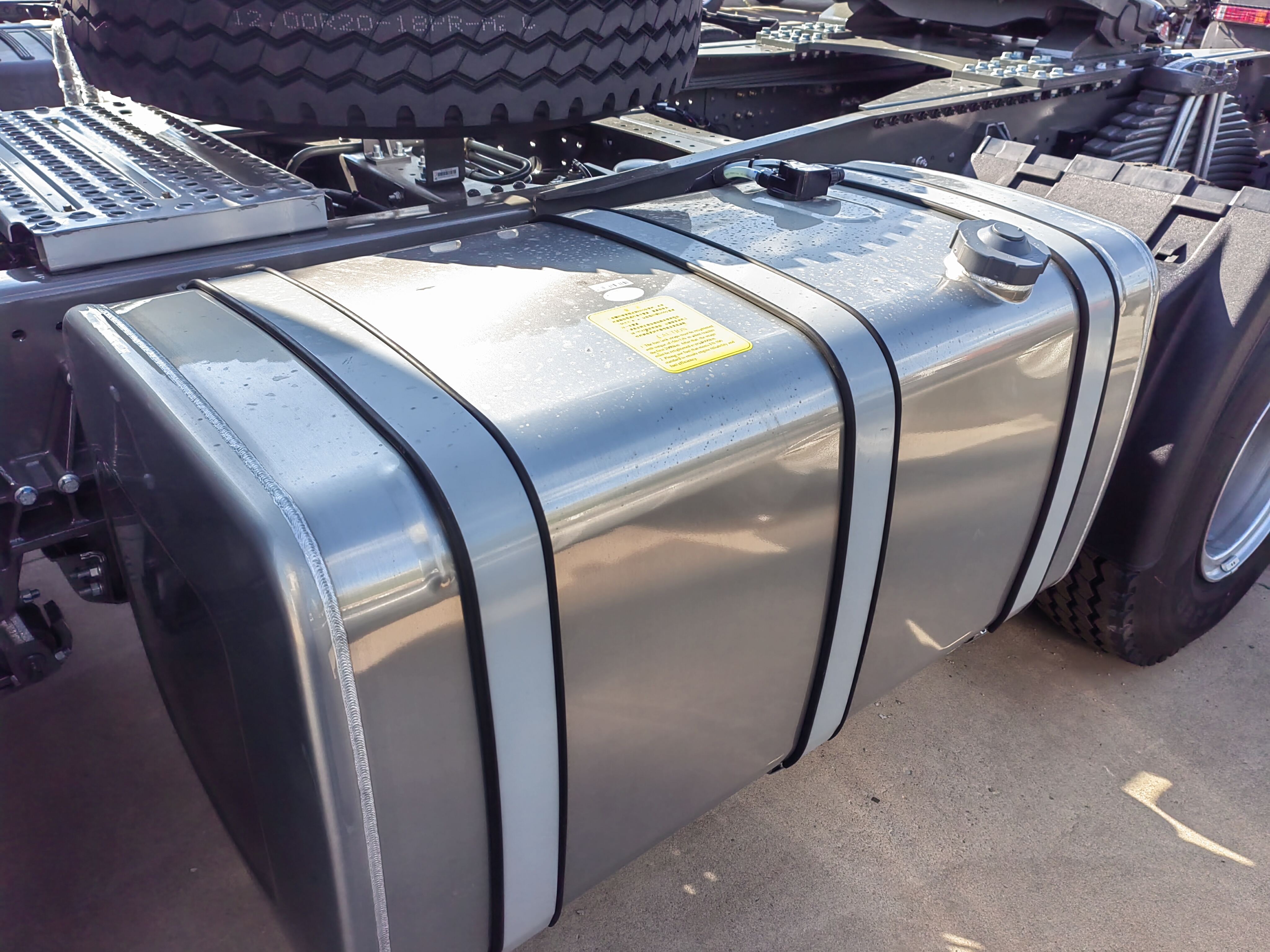

HOWO NX 6x4 TRACTOR TRUCK ZZ4257V3247B1 | Tank size | 400L (600L is optional)1000L fuel tank is optional | ||
| Tank material | Aluminium | ||||
| Body type | light type/heavy duty | BATTERIES | |||
| Cabin | Hw76,One Sleeper ,A/C,two seats,Mp3+radio | Type | Double Batteries | ||
| ENGINE | Capacity | 2×12/165 V/Ah | |||
| Model | WP12.400E201 /WP10.380E22 | Alternator | 28V/110A | ||
| Power | 400 HP@294KW /380HP@279KW | PERFORMANCE | |||
| Max Torque | 1920N.M@1200-1600rpm/1460N.M@1200-1600rpm | Max speed | 105Km/H/100Km/H | ||
| Displacement | 11.596 L /9.726L | Grad abiity | 30° | ||
| Bore & Stroke | 126x155mm/126x130 mm | Tuming Radius | 8.5M | ||
| Type | In-line six cylinder, water cooling, four stroke,turbocharged intercooled, and high pressure diesel pump | CHASSIS | |||
| Type | Light duty/ heavy duty multi layers frame is optional | ||||
| Emissions | Euro Ⅱ,Euro Ⅲ,Euro Ⅳ | Thickness | 8 mm+5mm 2 layers,(heavy duty is 8+8+5mm 3 layers ) | ||
| Exhaust | Standard Exhaust System with EVB | Tow hook | Equipped standard model | ||
| Air intake | Turbocharged | TIRES | Chinese Top brand Tires | ||
| TRANSMISSION | Tire size | 315/80R22.5 | |||
| Model | HW19710 (PTO optional) (9 gears and 12 gears optional) | Option | 12R22.5 ,13R22.5 or 12.00R20 | ||
| Type | Manual | No.of tires | 10+1 spare | ||
| Max Torgue | 1900N-M | DIMENSIONS | |||
| Gears | 10 forward & 2 reverse | Overall length | 7150mm | ||
| Clutch | φ430 Pul-type diaphragm spring clutch | Overall width | 2500mm | ||
| Speed Ratio | 14.284,10.623,7.871,5.876,4.375,3.265,2.428,1.799,1.343,1; R1:13.913,R2:3.18. | Wheelbase | 3400mm | ||
| Front Overhang | 1500mm | ||||
| AMT | No AMT version | Rear Overhang | 700mm | ||
| Overall height | 3117mm | ||||
| STEERING | WEIGHT | ||||
| Model | Bosch 8118 (Germany brand ) | Kerb Weight | 8300Kgs for normal duty/8800 kgs for heavy duty | ||
| Type | Hydraulic Ass.Steering | Max GCW | 60000Kg for normal duty/85000kgs for heavy duty | ||
| Side | RHD (LHD optional) | ACCESSORIES | |||
| FRONT AXLE | Driver seat | air suspension driver seat, Safety belt for driver and co-driver,4kg extinguisher (l) | |||
| Model | VGD71 / VGD95 | ||||
| Capacity | 7100kgs/ 9500kgs | Reverse Alarm |
Equipped |
||
| Type | Drum braking steering axle | ||||
| REAR AXLE | |||||

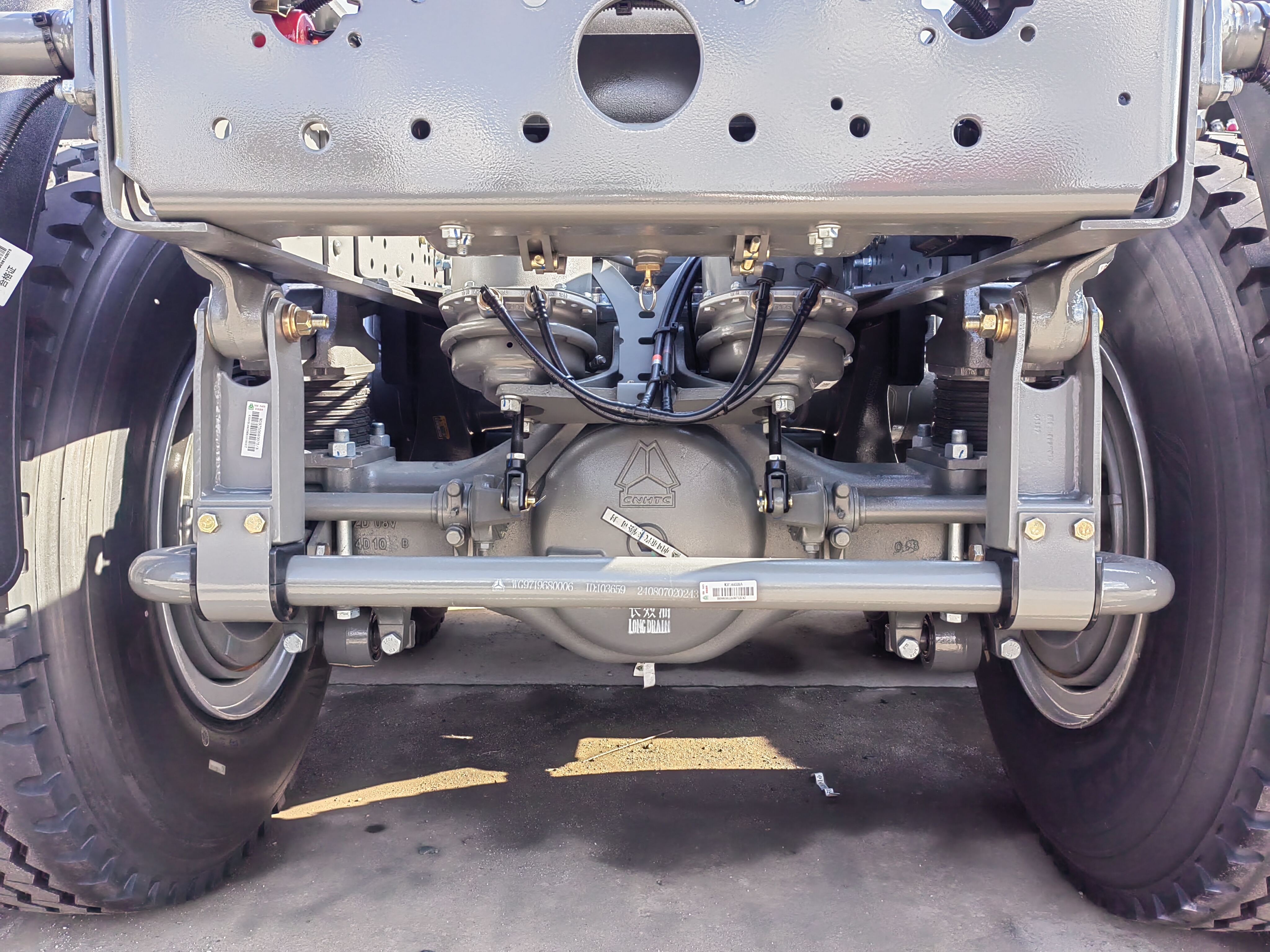

| Model | MCY12BGS normal duty /HC16 hub-reduction heavy duty axle | ||||
| Capacity | 12KGS*2 /16000KGS*2 | A/V system | Radio+mp3+USB | ||
| Type | Drum braking,4.11 ,3.93,4.8,4.42,5.73 ratio | OTHER SPECS | |||
| BRAKE SYSTEM | Suspension | Front 3 leaf springs ,rear 5 leaf springs /(heavy duty Front 9 leaf springs ,rear 12 leaf springs) | |||
| Type | Wabco Braking System | ||||
| ABS | none | Saddle/Fifthwheel | 50# JOST brand /90# SINOTRUK brand is also optional . | ||
| Auxiliary Brake | Engine Exhaust Valve Brake | ||||
COMPANY ADVANTAGES:
| 1 | Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
| 2 | Expert in kinds of heavy trucks and spare parts. |
| 3 | Personalized customization to meet your working requirements. |
| 4 | High quality of Original parts & OEM services. |
| 5 | Engineers and experts on call for pre/after sale support. |
| 6 | One-stop service with heavy trucks, parts as well as stand-by advice & support. |
Profile of our company:
JINAN CMHAN TRUCK SALES CO.,LTD. is authorized truck dealer by China National Heavy Duty Truck Group Co., Ltd (CNHTC) in Shandong Province. It was founded in 2023, located in Jinan which is the famous production base of heavy duty truck in China. The 4 main functions of our company are truck&machinery&trailer sale, spare part supply, information feedback, and after-sales service.
The team of our company could provide all kinds of trucks and buses meeting the requirement of customers with the best price. We have many years of experience in supplying trucks,buses,trailers, strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional box packing, professional and reliable loading goods in containers, on-time delivery and competitive price.
Products of our company are sold all over China, and are exported to more than Eighty countries and regions such as Guinea, Nigeria, Benin, Central Africa, Mongolia , DRC, Mauritania, Ghana, Benin, Angola, Tanzania, Congo, South east Asia and Latin America. In a control of price and quality, our products are highly appreciated in these markets.
