Home > Products > TRUCK > TRACTOR TRUCK

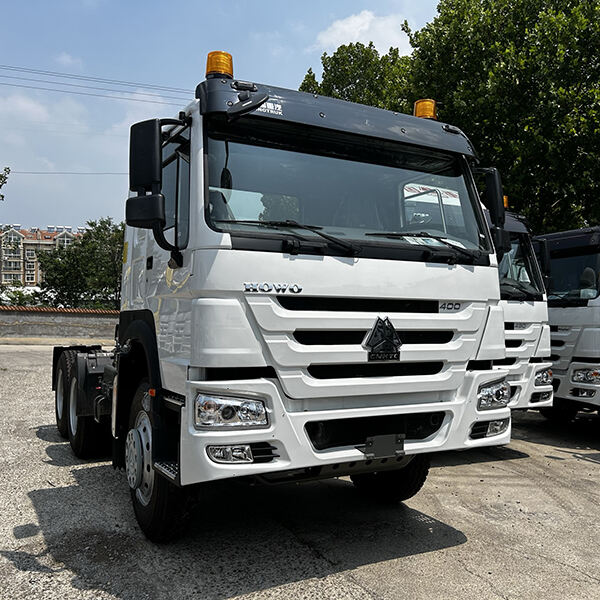

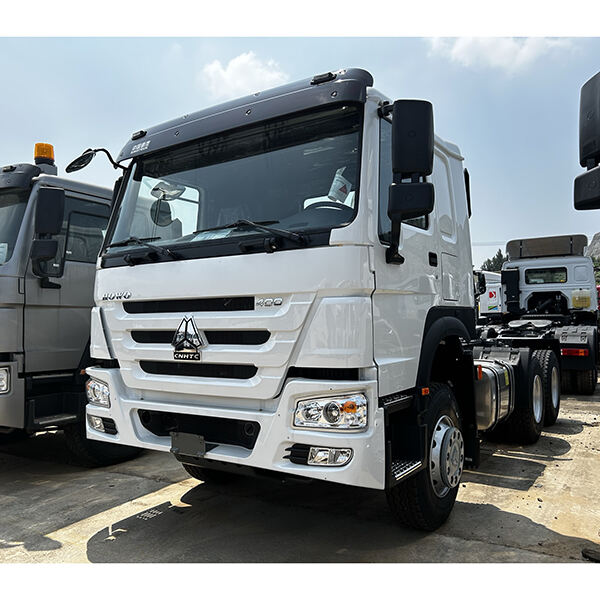

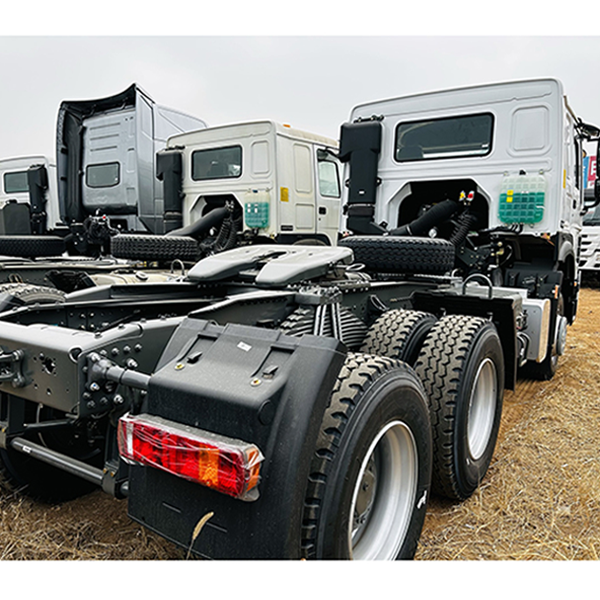

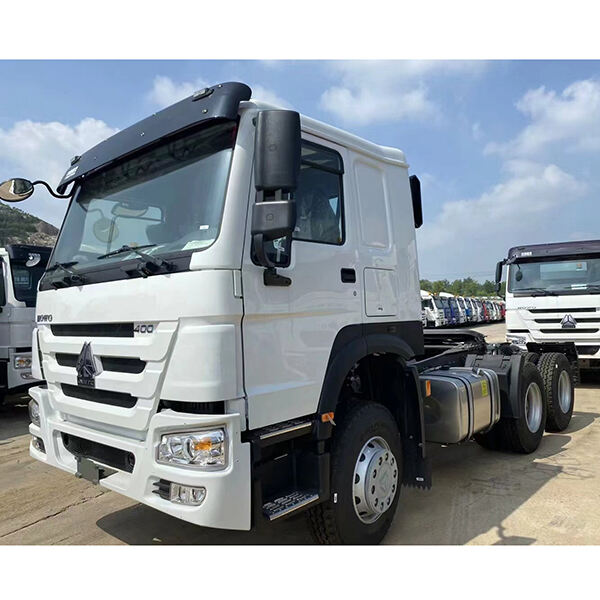

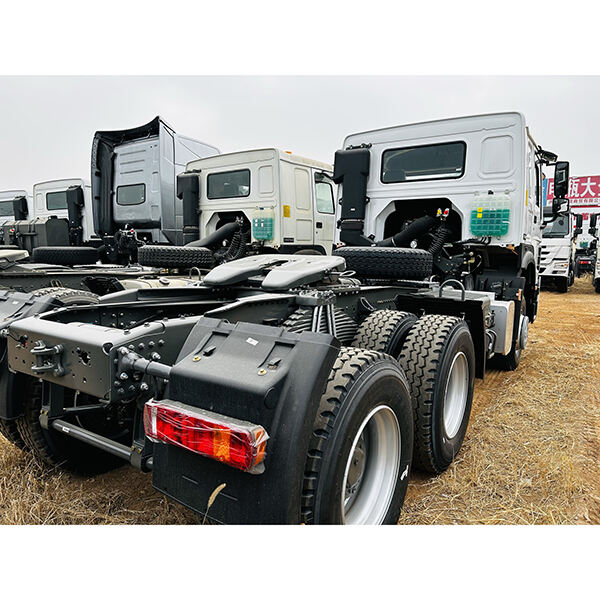

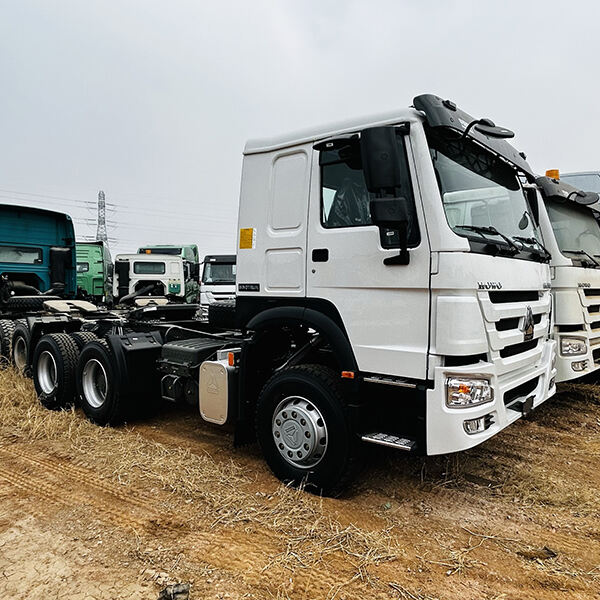

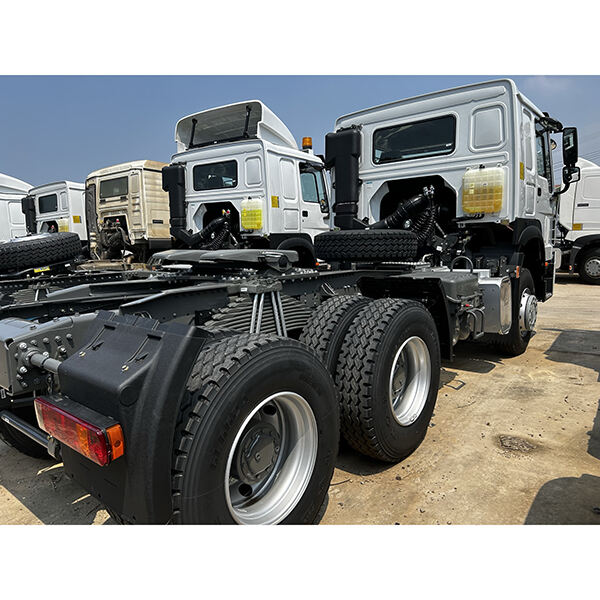

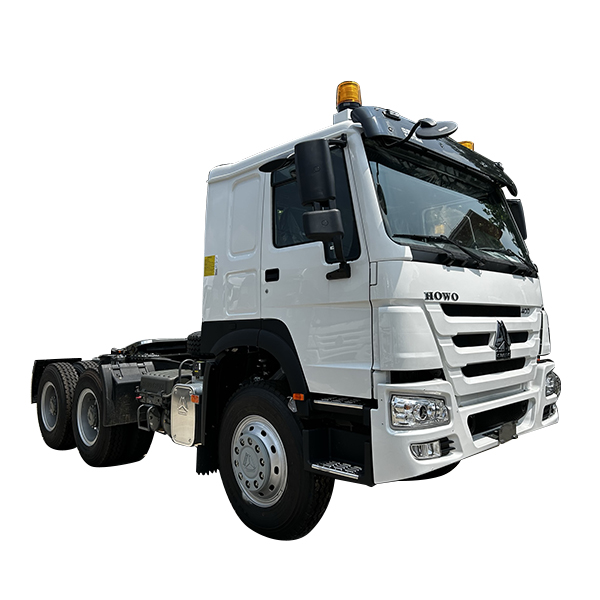

Model & Axel Configuration：HOWO 6x4 TRACTOR TRUCK ZZ4257V3247B1
Body type：Light type/heavy duty
Cabin：HW76 ,One Sleeper ,A/C,two seats,Mp3+radio
Product parameters
TRUCK TYPE |
FUEL TANK |
||||
Model & Axel |
HOWO 6x4 TRACTOR TRUCK ZZ4257V3247B1 |
Tank size |
400L (600L is optional)1000L fuel tank is optional |
||
Tank material |
Aluminium |
||||
Body type |
light type/heavy duty |
BATTERIES |
|||
Cabin |
HW76 ,One Sleeper ,A/C,two seats,Mp3+radio |
Type |
Double Batteries |
||
ENGINE |
Capacity |
2×12/165 V/Ah |
|||
Model |
WP12.400E201 /WP10.380E22 |
Alternator |
28V/110A |
||
Power |
400 HP@294KW /380HP@279KW |
PERFORMANCE |
|||
Max Torque |
Max speed |
105Km/H/100Km/H |
|||
Displacement |
11.596 L /9.726L |
Grad abiity |
30° |
||
Bore & Stroke |
126x155mm/126x130 mm |
Tuming Radius |
8.5M |
||
Type |
In-line six cylinder, water cooling, four stroke,turbocharged intercooled, and high pressure diesel pump |
CHASSIS |
|||
Type |
Light duty/ heavy duty multi layers frame is optional |
||||
Emissions |
Euro Ⅱ,Euro Ⅲ,Euro Ⅳ |
Thickness |
8 mm+5mm 2 layers,(heavy duty is 8+8+5mm 3 layers ) |
||
Exhaust |
Standard Exhaust System with EVB |
Tow hook |
Equipped standard model |
||
Air intake |
Turbocharged |
TIRES |
Chinese Top brand Tires |
||
TRANSMISSION |
Tire size |
315/80R22.5 |
|||
Model |
HW19710 (PTO optional) (9 gears and 12 gears optional) |
Option |
12R22.5 ,13R22.5 or 12.00R20 |
||
Type |
Manual |
No.of tires |
10+1 spare |
||
Max Torgue |
1900N-M |
DIMENSIONS |
|||
Gears |
10 forward & 2 reverse |
Overall length |
6950mm |
||
Clutch |
φ430 Pul-type diaphragm spring clutch |
Overall width |
2500mm |
||
Speed Ratio |
14.284, 10.623, 7.871, 5.876, 4.375, 3.265, 2.428, 1.799, 1.343, 1; R1:13.913, R2:3.18. |
Wheelbase |
3200mm |
||
Front Overhang |
1500mm |
||||
AMT |
No AMT version |
Rear Overhang |
700mm |
||
Overall height |
3117mm |
||||
STEERING |
WEIGHT |
||||
Model |
Bosch 8198 (Germany brand ) 8118 is optional |
Kerb Weight |
8300Kgs for normal duty/8800 kgs for heavy duty |
||
Type |
Hydraulic Ass.Steering |
Max GCW |
60000Kg for normal duty/85000kgs for heavy duty |
||
Side |
RHD (LHD optional) |
ACCESSORIES |
|||
FRONT AXLE |
Driver seat |
mechanical seats, Safety belt for driver and co-driver,4kg extinguisher (air suspension driver seat is optional) |
|||
Model |
VGD71 / VGD95 |
||||
Capacity |
7100kgs/ 9500kgs |
Reverse Alarm |
Equipped |
||
Type |
Drum braking steering axle |
||||
REAR AXLE | |||||
Model |
MCY13 normal duty /HC16 hub-reduction heavy duty axle |
||||
Capacity |
12KGS*2 /16000KGS*2 |
A/V system |
Radio+mp3+USB |
||
Type |
Drum braking,4.11 ,3.93,5.73 ratio |
CARGO BOX |
|||
BRAKE SYSTEM |
Suspension |
Front 3 leaf springs ,rear 5 leaf springs /(heavy duty Front 9 leaf springs ,rear 12 leaf springs) |
|||
Type |
Wabco Braking System |
||||
ABS |
none |
Saddle/Fifthwheel |
50# JOST brand /90# SINOTRUK brand is also optional . |
||
