| 3 Axle 40FT Container Transport Flatbed Trailer | |
| DIMENSIONS | |
| Tare weight | 6800kg |
| Overall Size | 12400mm*2480mm*1570mm |
| Payload | 38Ton |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345B, welded by automatic submerged - Arc process. Top flange 14 mm, bottom flange 16mm, Middle Flange 8mm, height 500mm |
| Side beam | 14# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 2mm diamond plate |
| Front board | No |
| Axle | 13Ton*3pcs |
| Suspension | Mechanical suspension Thickening type |
| Leaf spring | 13mm*90mm*10pcs *6sets |
| Tire | 385/65R - 22.5 *6pcs |
| Wheel rim | 11.75 - 22.5 *6pcs |
| Kingpin | 3.5" bolt - in king pin (90#) |
| Landing gear | Two - speed, manual operating, heavy duty landing gear |
| Twist lock | 12units ISO twist lock for 2x20ft 1x40ft |
| Water spraying system | No |
| Braking system | relay valve, T30/30 spring brake chamber, 40L air tanks |
| ABS | No |
| Electrical system | Voltage 24V, Receptacle 7 ways (7 wire harness), Use high - grade LED lights, one set 6 core standard Cable |
| Painting | Complete chassis sand blasting to clean rust, 1coat of anticorrosive prime,2coats of final paint, spray wax |
| Accessories | One standard tool box, two spare tire carrier, one crank, one shaft head wrench 2.5kg weight*1pcs |
| Date of delivery | 15 workdays after we received 30% of contract value T/T down payment |
| Packaging&Shipping | To save the freight cost, the best way is 3 sets stick together, OR one 40HQ container can load 2 sets |

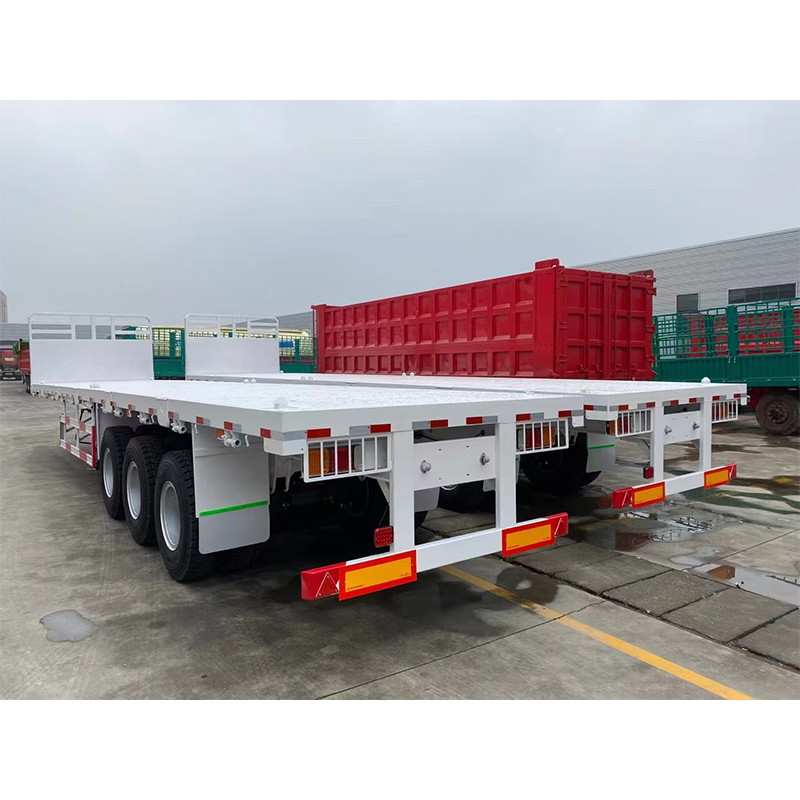

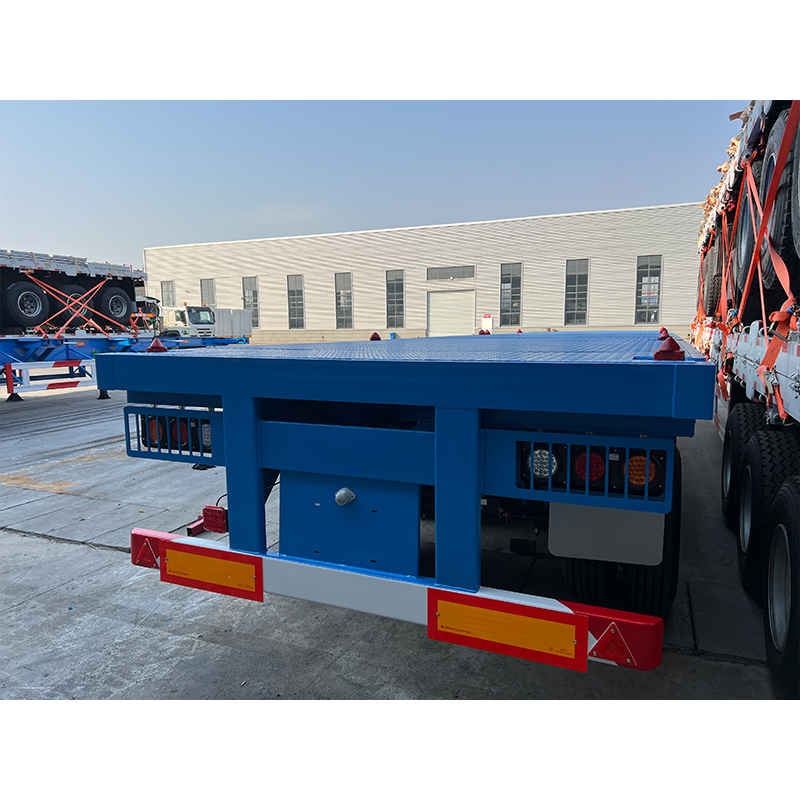

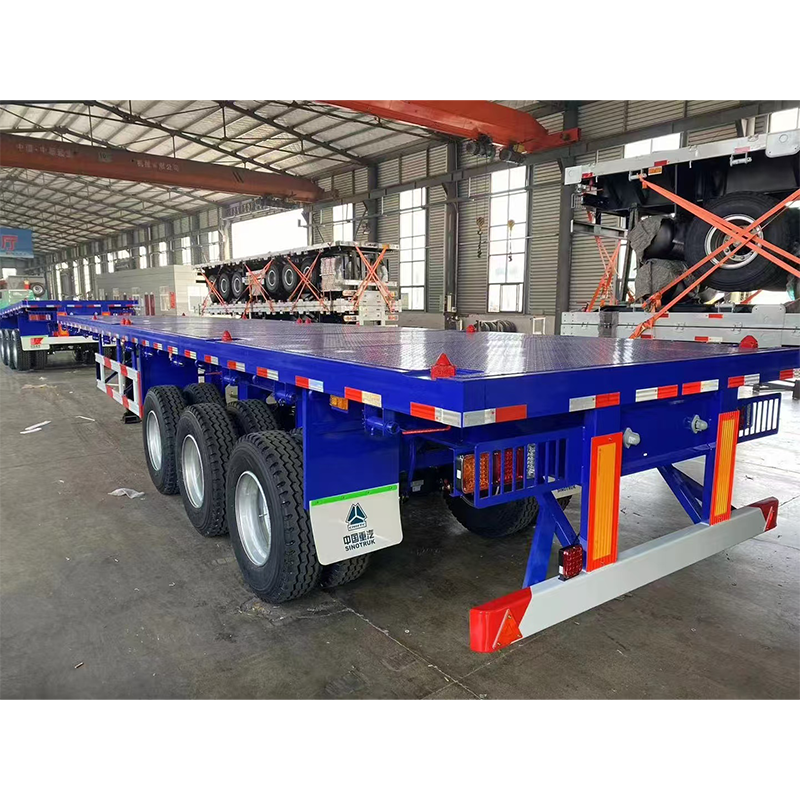

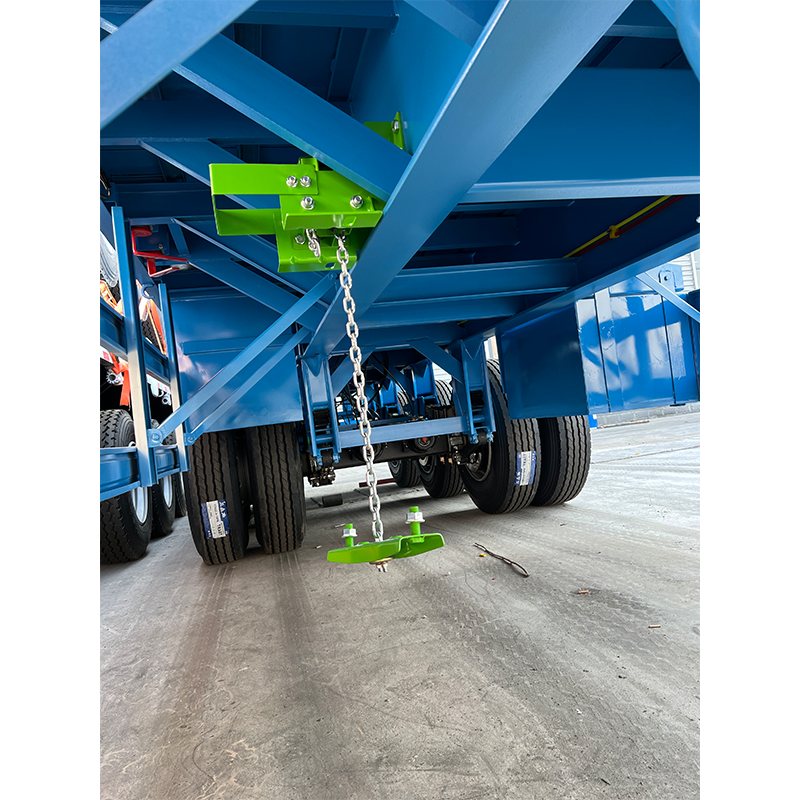

Reference photos
COMPANY ADVANTAGES:
| 1 | Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
| 2 | Expert in kinds of heavy trucks and spare parts. |
| 3 | Personalized customization to meet your working requirements. |
| 4 | High quality of Original parts & OEM services. |
| 5 | Engineers and experts on call for pre/after sale support. |
| 6 | One-stop service with heavy trucks, parts as well as stand-by advice & support. |
Profile of our company:
JINAN CMHAN TRUCK SALES CO.,LTD. is authorized truck dealer by China National Heavy Duty Truck Group Co., Ltd (CNHTC) in Shandong Province. It was founded in 2023, located in Jinan which is the famous production base of heavy duty truck in China. The 4 main functions of our company are truck&machinery&trailer sale, spare part supply, information feedback, and after-sales service.
The team of our company could provide all kinds of trucks and buses meeting the requirement of customers with the best price. We have many years of experience in supplying trucks,buses,trailers, strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional box packing, professional and reliable loading goods in containers, on-time delivery and competitive price.
Products of our company are sold all over China, and are exported to more than Eighty countries and regions such as Guinea, Nigeria, Benin, Central Africa, Mongolia , DRC, Mauritania, Ghana, Benin, Angola, Tanzania, Congo, South east Asia and Latin America. In a control of price and quality, our products are highly appreciated in these markets.
