The animal transport trailer with detachable long sidewall use to load a wide range of bulk cargo, like sand, bags, poultry etc. 4 axle livestock trailer for sale in Takoradi is very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty bulk cargo. The livestock semi trailer can be added with a container turn lock to transport the container.
China livestock trailer with fence structure design. SINOTRUK has 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.

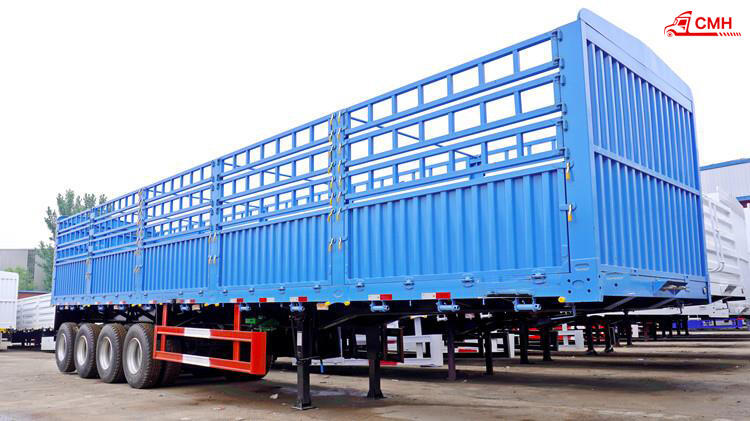

4 Axle Animal Transport Livestock Trailer for Sale
4 Axle Animal Transport Livestock Trailer for Sale
Dimension(mm): 13000x2600x3420mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤80T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. SINOTRUK adopts high strength steel material to manufacture the side wall semi trailer, it can make the animal transport trailer for sale in Takoradi have a higher loading capacity and a longer service life.
2. SINOTRUKPhilippines uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.
4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
5. Hight quality side wall, make sure the stable and safety of the loads.
COMPANY ADVANTAGES:
1 |
Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
2 |
Expert in kinds of heavy trucks and spare parts. |
3 |
Personalized customization to meet your working requirements. |
4 |
High quality of Original parts & OEM services. |
5 |
Engineers and experts on call for pre/after sale support. |
6 |
One-stop service with heavy trucks, parts as well as stand-by advice & support. |
FAQ
Q:HOW CAN YOU INSURE MY MONEY BE SAFE?
A:Firstly you can send the money via trade assurances,Secondly We have worked in the field of truck sale for many years,and we have served thousands of buyer all over the world,We take the reputation as our life.we won’t deduct any money if the business break down in the end.
Q:WHAT’S YOUR MOQ AND DELIVERY TIME?
A:Usually,our MOQ is 1 sets,and our delivery time is within 30days for new placed order, and for stocked trucks our lead time is within 5 workdays.
Q:CAN I CHOOSE THE TRANSPORTATION METHOD BY MYSELF?
A:Yes,of course.But if CIF, you choose a different ships,that means the price will be different,(the price of bulk cargo ship is different from RO-RO ship )so the price will be changed,please notice that.
Q:DO YOU SUPPLY SPEAR PARTS?
A:Yes,we can provide all parts of the truck,like engine parts,electric parts,truck body parts and truck cabin parts.
Q:HOW CAN WE GET AFTER SALE SERVICE ?
A:We SINOTRUK Group has many overseas after sale service center, you can get services in these center,Also we can provide you technical support and parts supply,.
