Home > Products > TRUCK > CONCRETE MIXER TRUCK > HOWO MIXER TRUCK 6x4
| TRUCK TYPE | |
|
Model & Axel Configuration |
HOWO NX 6x4 cement mixer tank truck |
| Structure type | heavy duty |
| Cabin | H77L,One Sleeper ,A/C,two seats,Mp3+radio |
| ENGINE | |
| Model | WP12.400E201 /WP10.380E22 |
| Power | 400 HP@294KW /380HP@279KW |
| Max Torque | 1920N.M@1200-1600rpm/1460N.M@1200-1600rpm |
| Displacement | 11.596 L /9.726L |
| Bore & Stroke | 126x155mm/126x130 mm |
| Type | In-line six cylinder, water cooling, four stroke,turbocharged intercooled, and high pressure diesel pump with full power PTO |
| Emissions | Euro Ⅱ,Euro Ⅲ,Euro Ⅳ |
| Exhaust | Standard Exhaust System with EVB |
| Air intake | Turbocharged |
| TRANSMISSION | |
| Model | HW19710 (9 gears and 12 gears optional) |
| Type | Manual |
| Max Torgue | 1900N-M |
| Gears | 10 forward & 2 reverse |
| Clutch | φ430 Pul-type diaphragm spring clutch |
| Speed Ratio | 14.284,10.623,7.871,5.876,4.375,3.265,2.428,1.799,1.343,1; R1:13.913,R2:3.18. |
| AMT | No AMT version |
| STEERING | |
| Model | Bosch 8118 (Germany brand ) |
| Type | Hydraulic Ass.Steering |
| Side | RHD (LHD optional) |
| FRONT AXLE | |
| Model | VGD95 |
| Capacity | 9500kgs |
| Type | Drum braking steering axle |
| REAR AXLE | |
| Model | HC16 hub-reduction heavy duty axle |
| Capacity | 16000KGS*2 |
| Type | Drum braking, 5.73 |
| BRAKE SYSTEM | |
| Type | Wabco Braking System |
| ABS | none |
| Auxiliary Brake | Engine Exhaust Valve Brake |
| FUEL TANK | |
| Tank size | 400L |
| Tank material | Aluminium |
| BATTERIES | |
| Type | Double Batteries |
| Capacity | 2×12/165 V/Ah |
| Alternator | 28V/110A |
| PERFORMANCE | |
| Max speed | 85Km/H |
| Grad abiity | 35° |
| Tuming Radius | 8.5M |
| CHASSIS | |
| Type | heavy duty multi layers frame |
| Thickness | 8 mm+8mm+5mm part in three layers |
| Tow hook | Equipped standard model |
| TIRES | Chinese Top brand Tires |
| Tire size | 12.00R20 |
| Option | 12R22.5 ,13R22.5 or 315/80R22.5 |
| No.of tires | 10+1 spare |
| DIMENSIONS | |
| Overall length | 9750mm |
| Overall width | 2550mm |
| Wheelbase | 3800mm |
| Front Overhang | 1500mm |
| Rear Overhang | 2200mm |
| Overall height | 3900mm |
| WEIGHT | |
| Kerb Weight | 14100Kg |
| Max GCW | 30000Kg |
| ACCESSORIES | |
| Driver seat | mechanical seat, Safety belt for driver and co-driver,4kg extinguisher (air suspension driver seat is optional) |
| Reverse Alarm |
Equipped |
| A/V system | Radio+mp3+USB |
| MIXER DRUM/MIXER TANK | |
| Tank Volume | 10 cbm, 8cbm ,12cbm optional . |
| Hydraulic system | motor ,reducer ,pump all adopt European brand / |
| Suspension | Front 10 leaf springs ,rear 12 leaf springs |

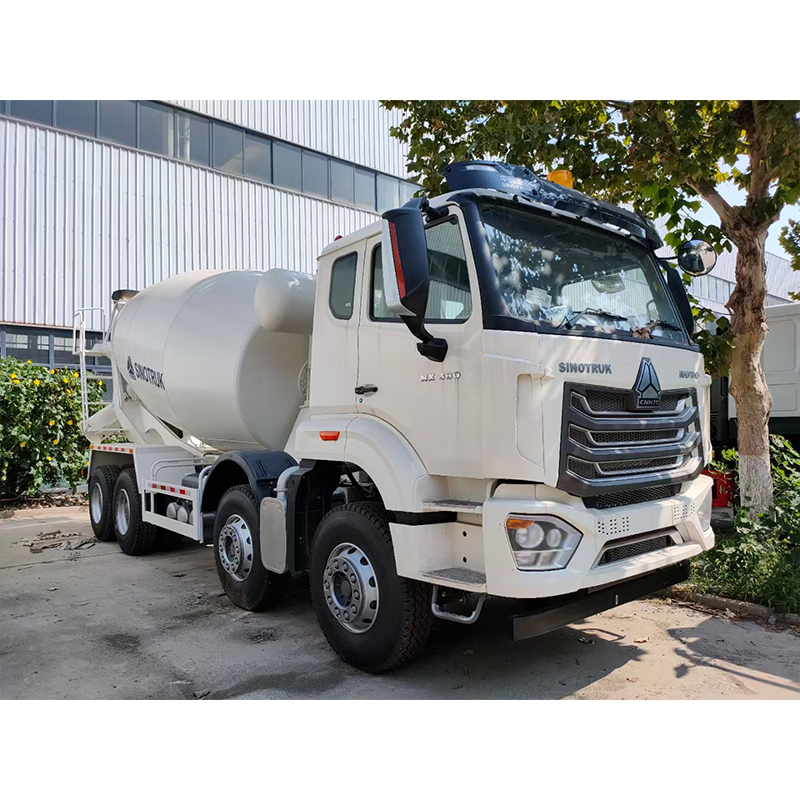

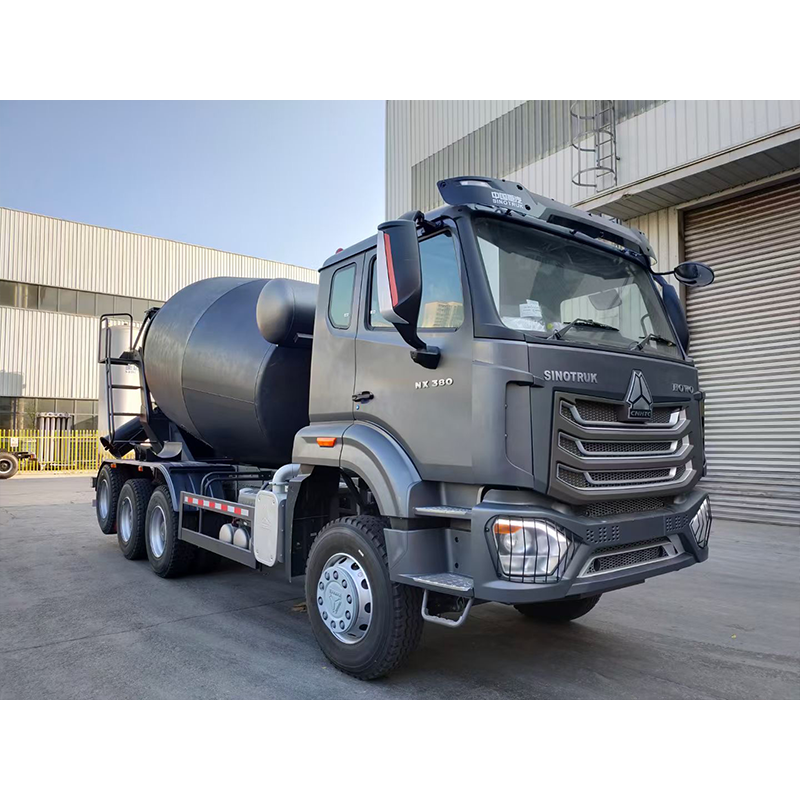

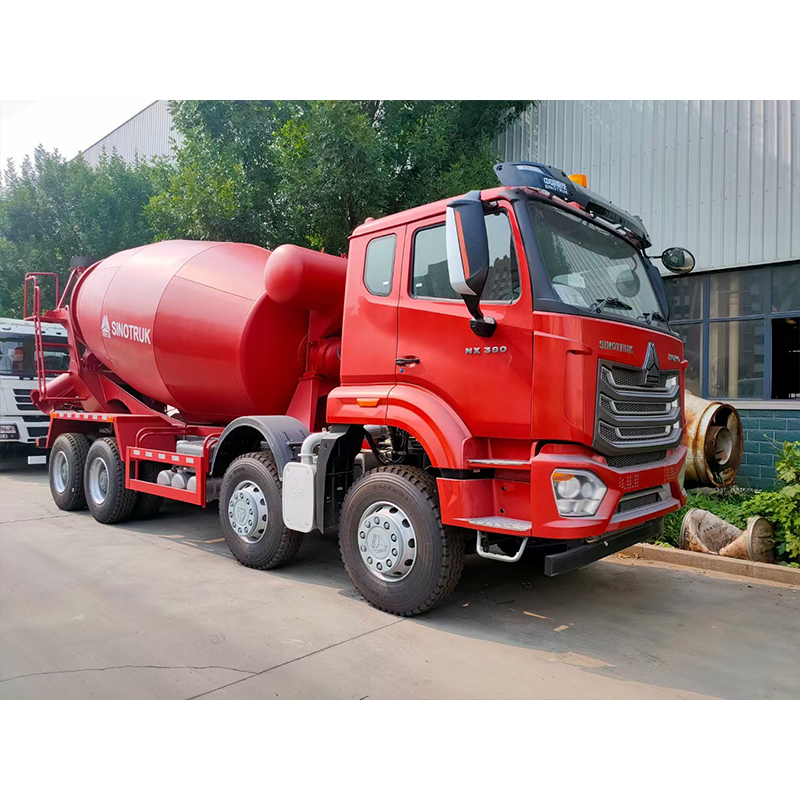

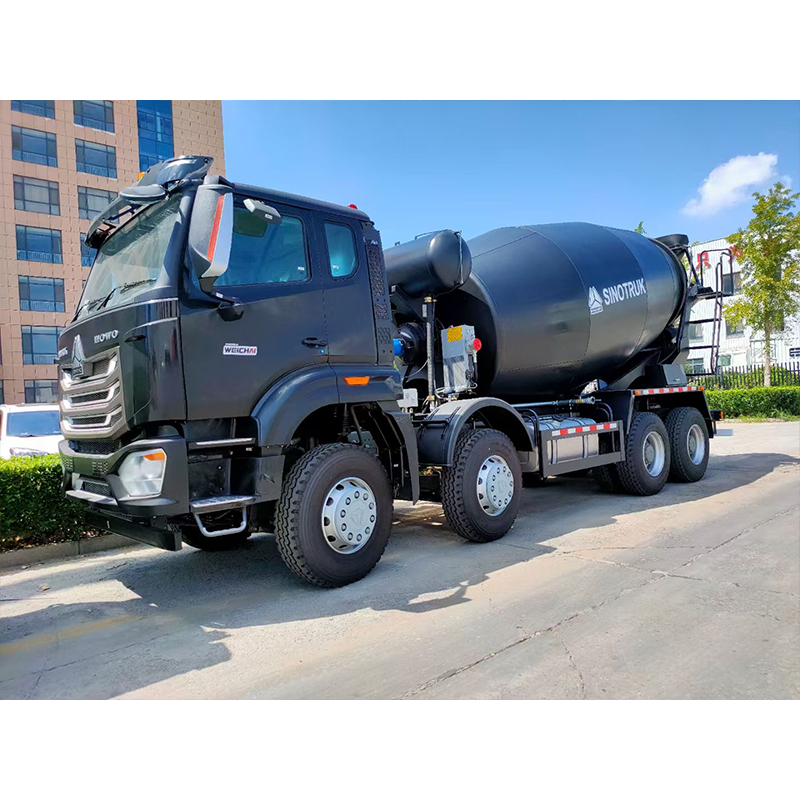

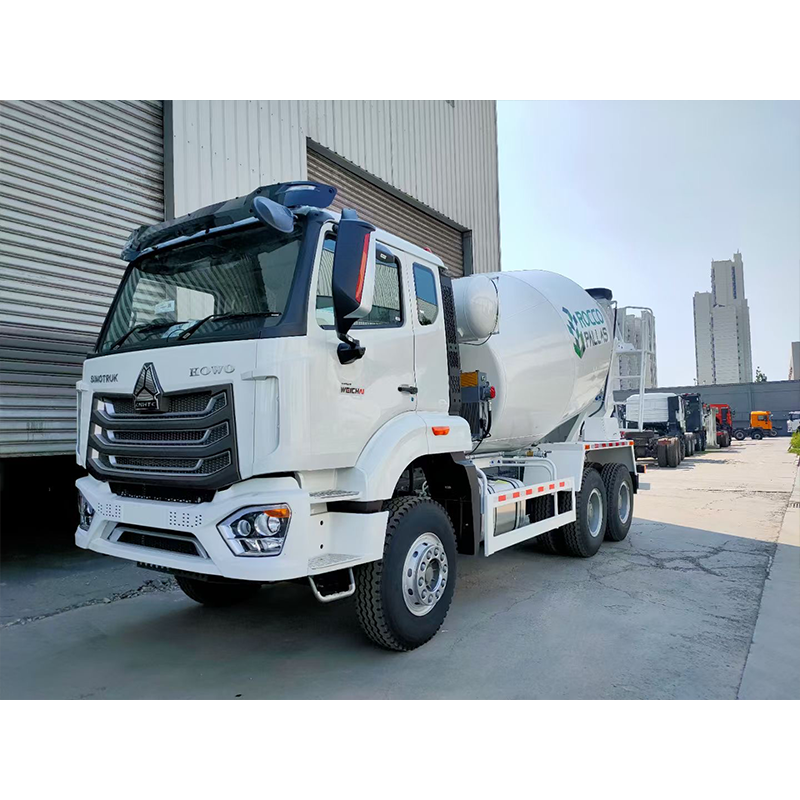

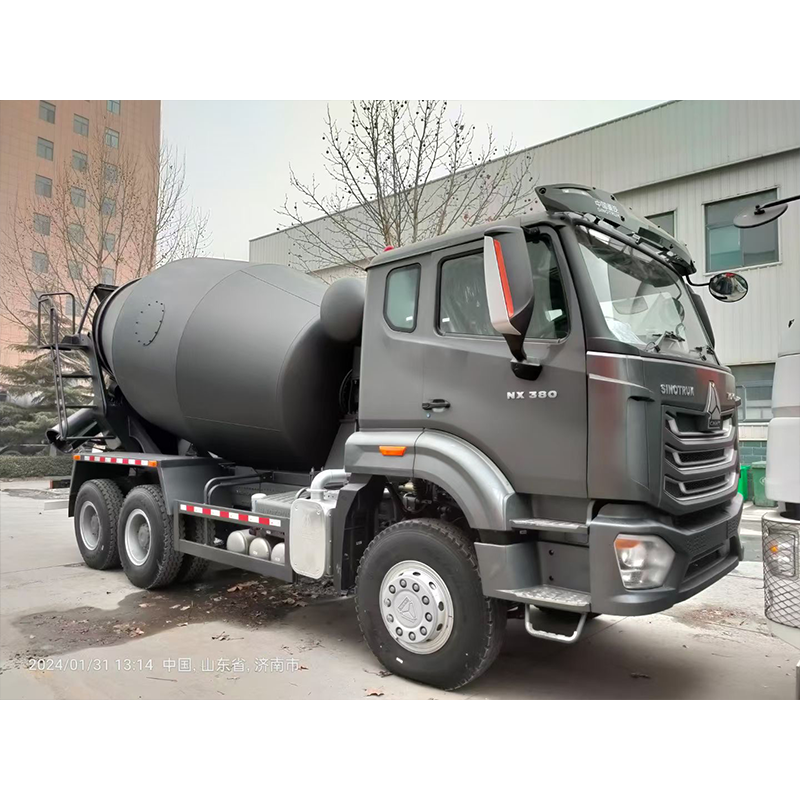

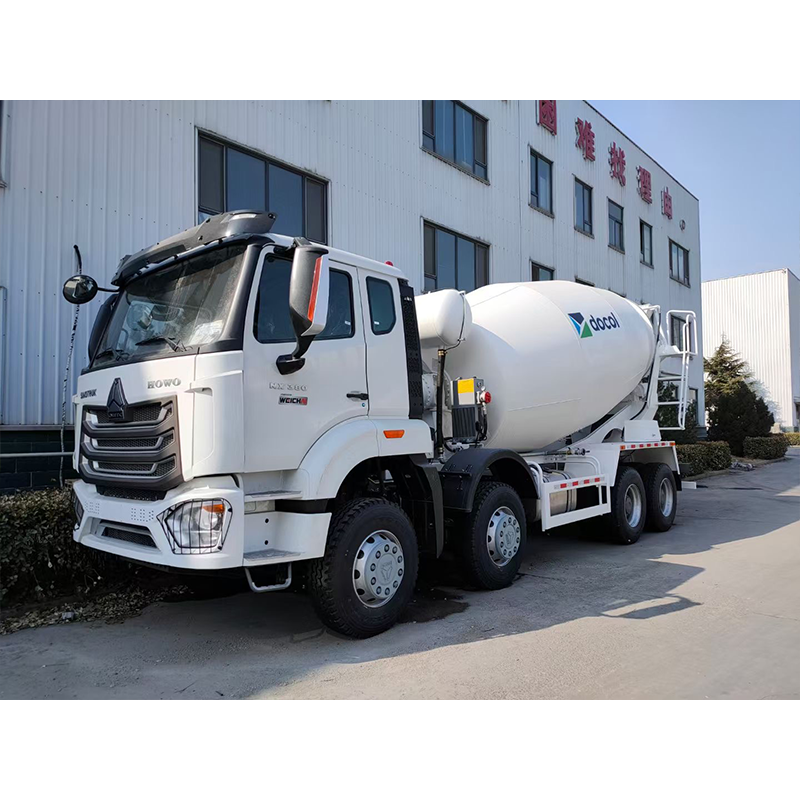

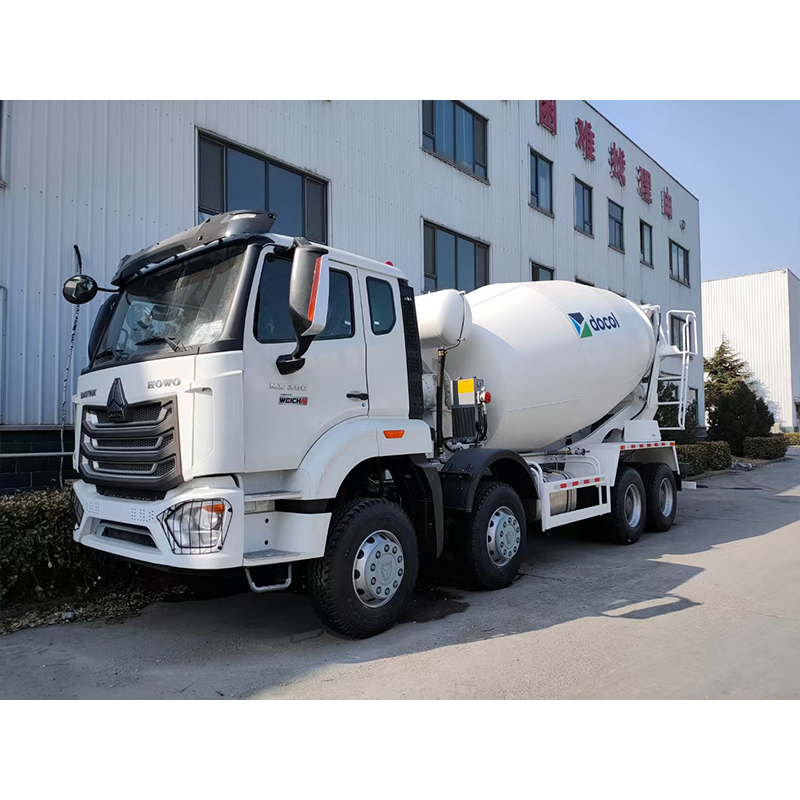

Reference photos
