Home > Products > TRUCK > TANK TRUCK
| TRUCK TYPE | FUEL TANK | ||||
| Model & Axel Configuration |

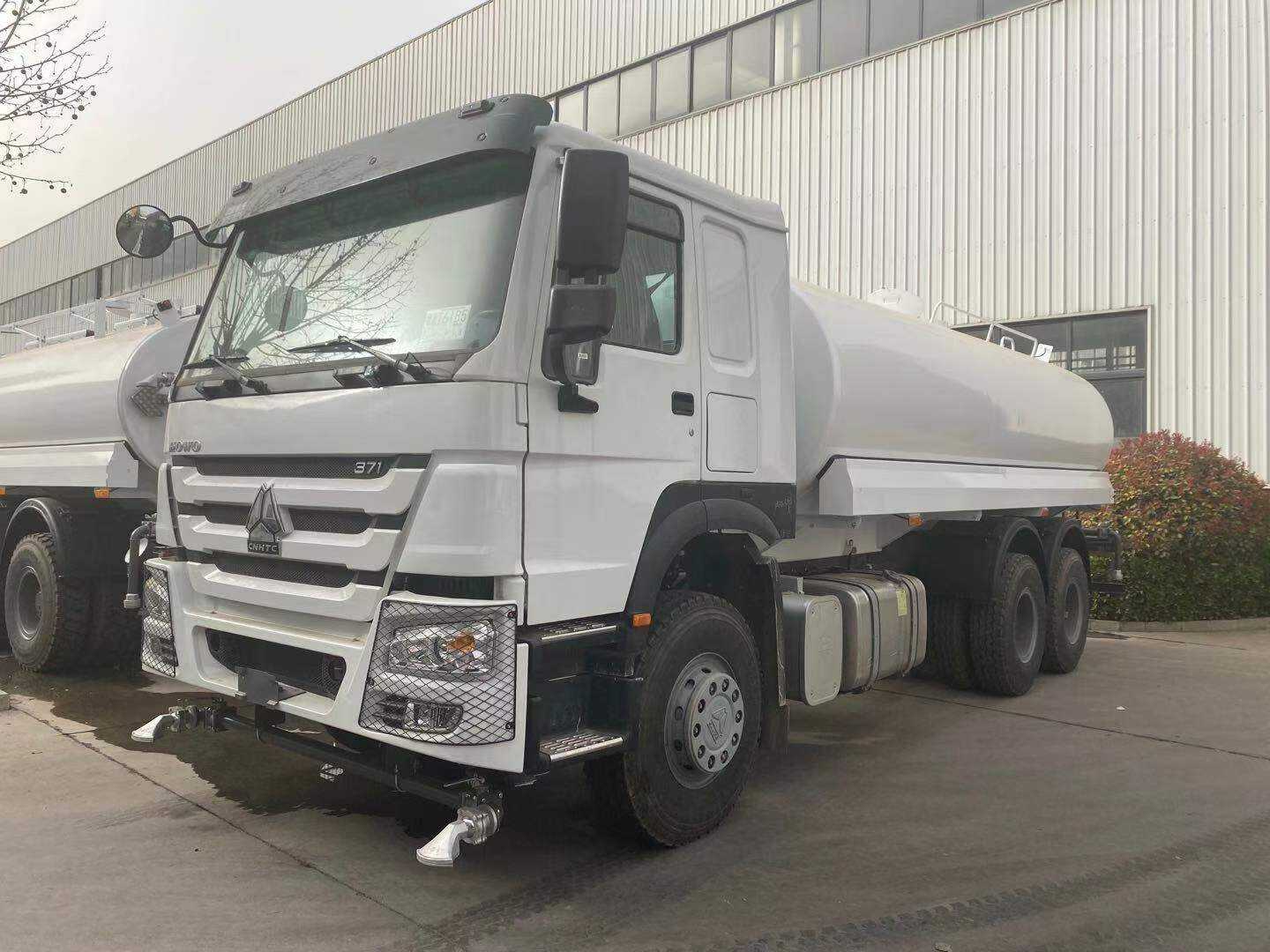

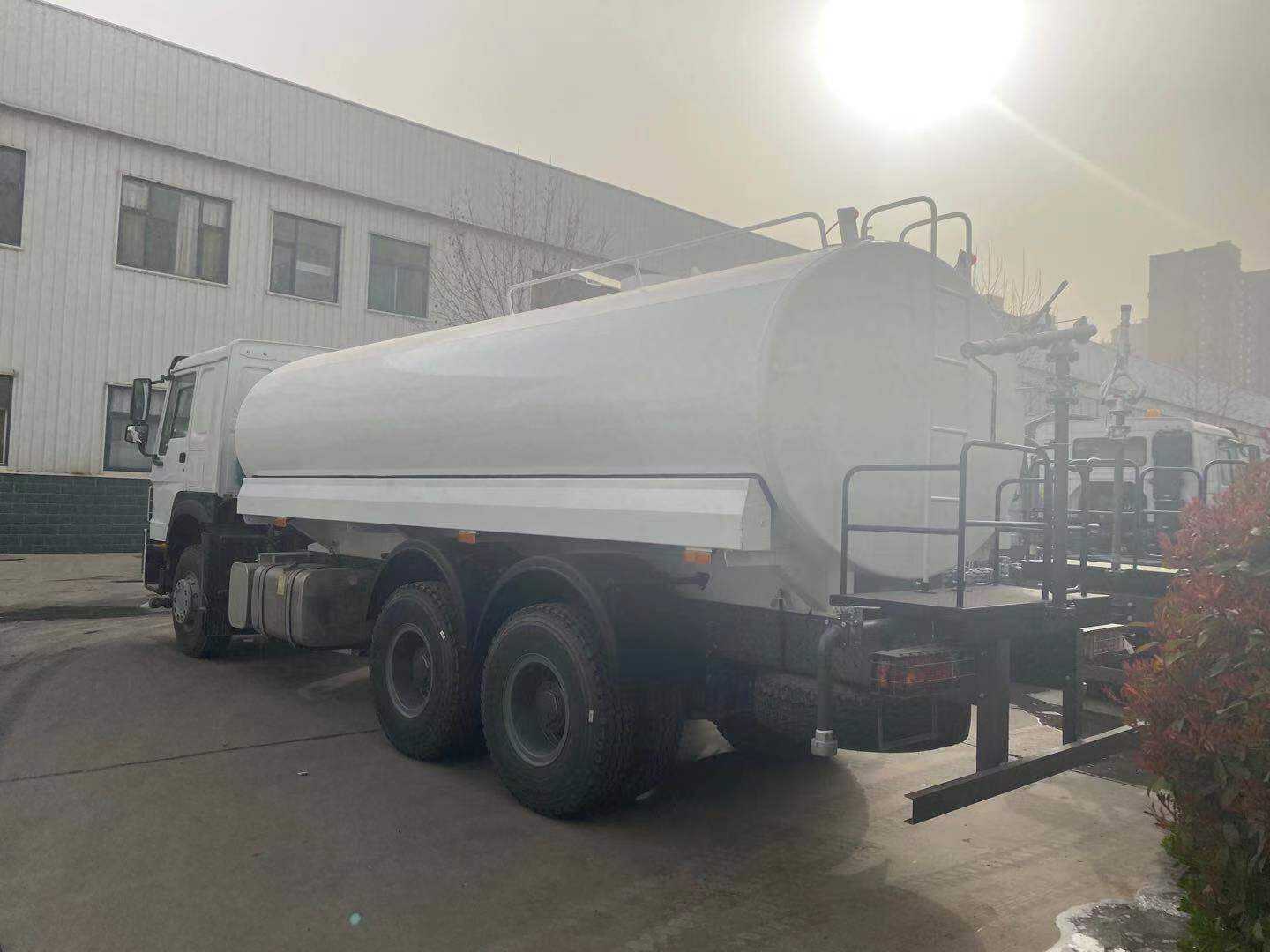

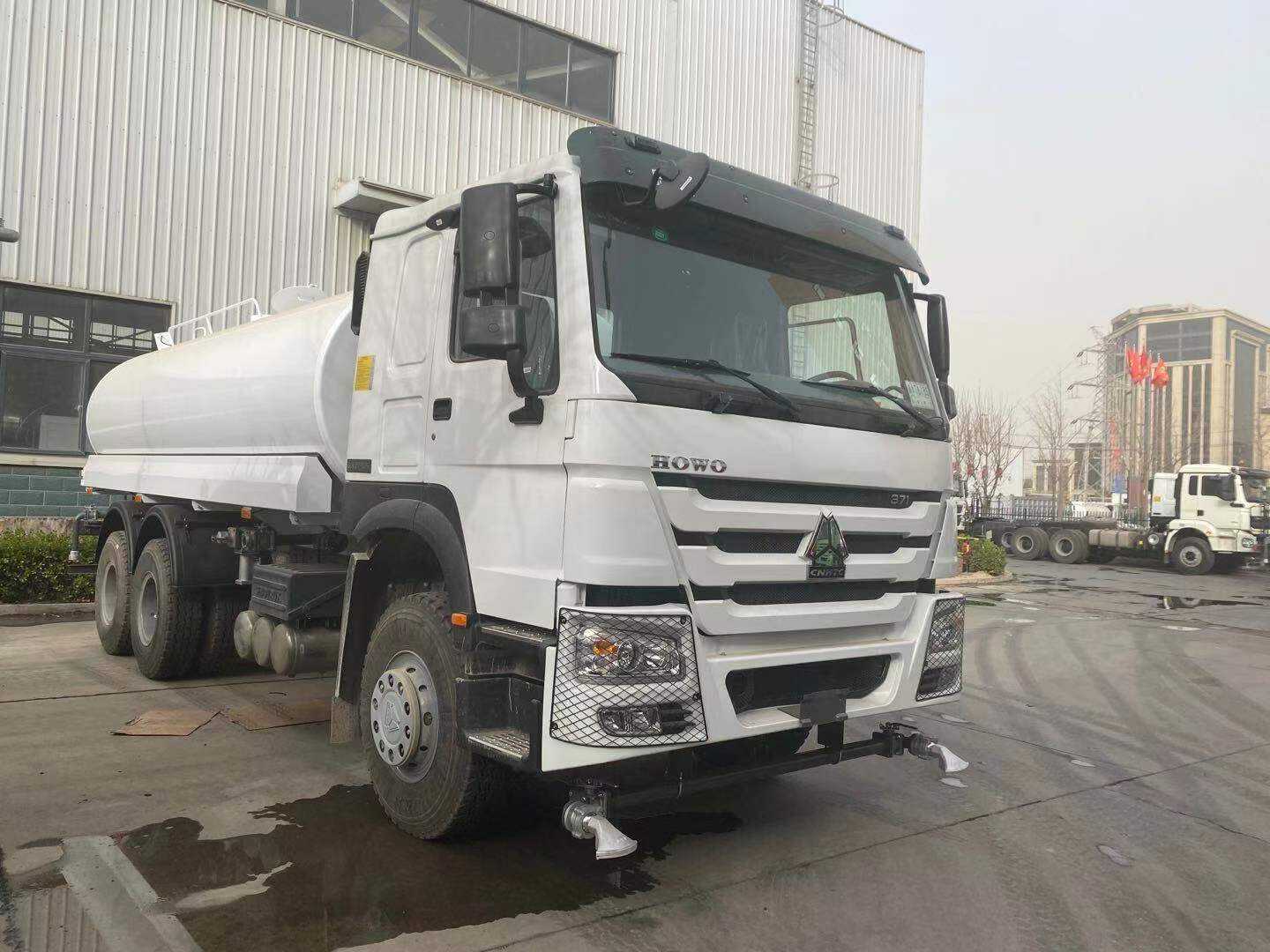

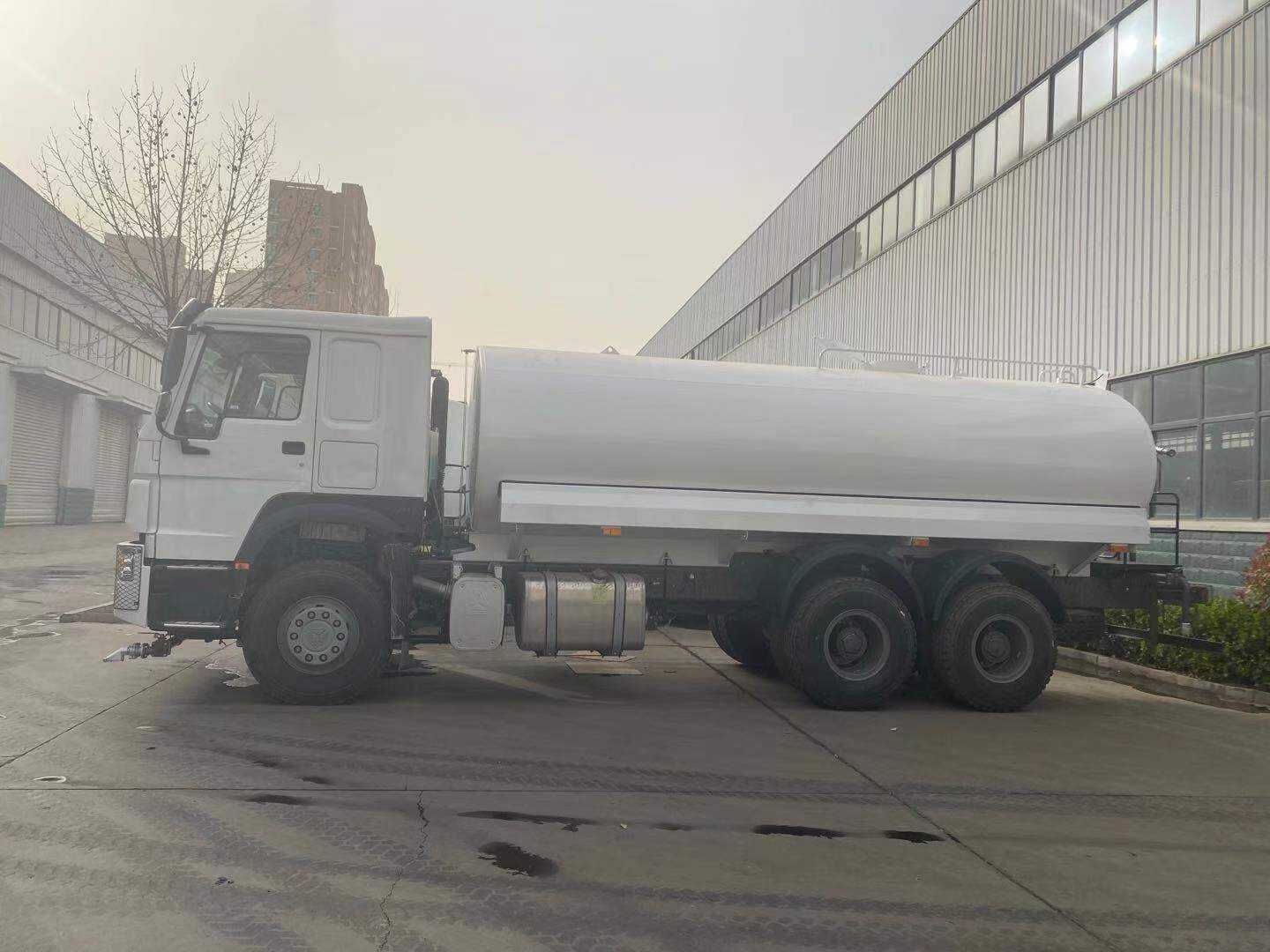

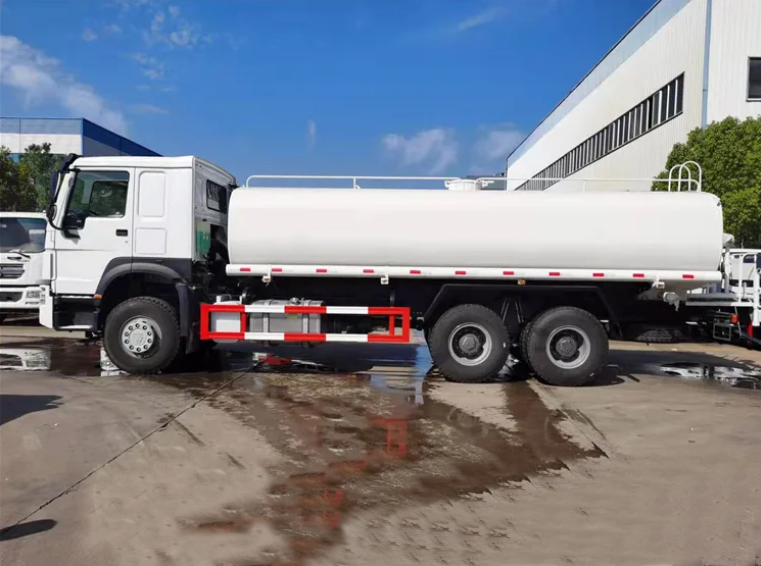

HOWO 6x4 water spray tank truck 20000L | Tank size | 400L (400L+400L is optional) | ||
| Tank material | Aluminium | ||||
| Body type | heavy duty | BATTERIES | |||
| Cabin | HW76,One Sleeper ,A/C,two seats,Mp3+radio | Type | Double Batteries | ||
| ENGINE | Capacity | 2×12/165 V/Ah | |||
| Model | WP12.400E201 /WP10.380E22 | Alternator | 28V/110A | ||
| Power | 400 HP@294KW /380HP@279KW | PERFORMANCE | |||
| Max Torque | 1920N.M@1200-1600rpm/1460N.M@1200-1600rpm | Max speed | 95Km/H | ||
| Displacement | 11.596 L /9.726L | Grad abiity | 30° | ||
| Bore & Stroke | 126x155mm/126x130 mm | Tuming Radius | 13.5M | ||
| Type | In-line six cylinder, water cooling, four stroke,turbocharged intercooled, and high pressure diesel pump | CHASSIS | |||
| Type | heavy duty multi layers frame | ||||
| Emissions | Euro Ⅱ,Euro Ⅲ,Euro Ⅳ | Thickness | 8 mm+8mm+5mm part in three layers | ||
| Exhaust | Standard Exhaust System with EVB | Tow hook | Equipped standard model | ||
| Air intake | Turbocharged | TIRES | Chinese Top brand Tires | ||
| TRANSMISSION | Tire size | 12.00R20 | |||
| Model | HW19710 (PTO optional) (9 gears and 12 gears optional) | Option | 12R22.5 ,13R22.5 or 315/80R22.5 | ||
| Type | Manual | No.of tires | 10+1 spare | ||
| Max Torgue | 1900N-M | DIMENSIONS | |||
| Gears | 10 forward & 2 reverse | Overall length | 10350mm | ||
| Clutch | φ430 Pul-type diaphragm spring clutch | Overall width | 2550mm | ||
| Speed Ratio | 14.284,10.623,7.871,5.876,4.375,3.265,2.428,1.799,1.343,1; R1:13.913,R2:3.18. | Wheelbase | 4600mm | ||
| Front Overhang | 1500mm | ||||
| AMT | No AMT version | Rear Overhang | 2900mm | ||
| Overall height | 3117mm | ||||
| STEERING | WEIGHT | ||||
| Model | Bosch 8118 (Germany brand ) | Kerb Weight | 11490Kg | ||
| Type | Hydraulic Ass.Steering | Max GCW | 30000Kg | ||
| Side | RHD (LHD optional) | ACCESSORIES | |||
| FRONT AXLE | Driver seat | mechanical seat, Safety belt for driver and co-driver,4kg extinguisher (air suspension driver seat is optional) | |||
| Model | VGD95 | ||||
| Capacity | 9500kgs | Reverse Alarm |
Equipped |
||
| Type | Drum braking steering axle | ||||
| REAR AXLE | |||||
| Model | HC16 hub-reduction heavy duty axle | ||||
| Capacity | 16000KGS*2 | A/V system | Radio+mp3+USB | ||
| Type | Drum braking, 4.42/4.8/5.73 | TANK BODY | |||
| BRAKE SYSTEM | Inner size and thickness | 20000L , 20cbm in 1 compartment ,,tank thickness in 5.5mm,carbon steel. with front spraying rear sprinkling, with water shooting gun . | |||
| Type | Wabco Braking System | Lifting system | none | ||
| ABS | none | Suspension | Front 9 leaf springs ,rear 12 leaf springs | ||
| Auxiliary Brake | Engine Exhaust Valve Brake | ||||
COMPANY ADVANTAGES:
| 1 | Rich Experience in sale of the Sinotruk’s heavy equipment & truck. |
| 2 | Expert in kinds of heavy trucks and spare parts. |
| 3 | Personalized customization to meet your working requirements. |
| 4 | High quality of Original parts & OEM services. |
| 5 | Engineers and experts on call for pre/after sale support. |
| 6 | One-stop service with heavy trucks, parts as well as stand-by advice & support. |
Profile of our company:
JINAN CMHAN TRUCK SALES CO.,LTD. is authorized truck dealer by China National Heavy Duty Truck Group Co., Ltd (CNHTC) in Shandong Province. It was founded in 2023, located in Jinan which is the famous production base of heavy duty truck in China. The 4 main functions of our company are truck&machinery&trailer sale, spare part supply, information feedback, and after-sales service.
The team of our company could provide all kinds of trucks and buses meeting the requirement of customers with the best price. We have many years of experience in supplying trucks,buses,trailers, strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional box packing, professional and reliable loading goods in containers, on-time delivery and competitive price.
Products of our company are sold all over China, and are exported to more than Eighty countries and regions such as Guinea, Nigeria, Benin, Central Africa, Mongolia , DRC, Mauritania, Ghana, Benin, Angola, Tanzania, Congo, South east Asia and Latin America. In a control of price and quality, our products are highly appreciated in these markets.
FAQ
Q:HOW CAN YOU INSURE MY MONEY BE SAFE?
A:Firstly you can send the money via trade assurances,Secondly We have worked in the field of truck sale for many years,and we have served thousands of buyer all over the world,We take the reputation as our life.we won’t deduct any money if the business break down in the end.
Q:WHAT’S YOUR MOQ AND DELIVERY TIME?
A:Usually,our MOQ is 1 sets,and our delivery time is within 30days for new placed order, and for stocked trucks our lead time is within 5 workdays.
Q:CAN I CHOOSE THE TRANSPORTATION METHOD BY MYSELF?
A:Yes,of course.But if CIF, you choose a different ships,that means the price will be different,(the price of bulk cargo ship is different from RO-RO ship )so the price will be changed,please notice that.
Q:DO YOU SUPPLY SPEAR PARTS?
A:Yes,we can provide all parts of the truck,like engine parts,electric parts,truck body parts and truck cabin parts.
Q:HOW CAN WE GET AFTER SALE SERVICE ?
A:We SINOTRUK Group has many overseas after sale service center, you can get services in these center,Also we can provide you technical support and parts supply,.
HOW TO CONTACT YOU DIRECTLY?
NAME:NICK SMITH
POSITION: INTERNATIONAL TRADE D.P. MANAGER
TEL&WHATSAPP.:+86 18678655109
Email:[email protected]
Website:www.cmhtruck.com
Whatsapp&wechat&viber&imo&tango&line&zoom account all same as cellphone number.You can add my number in your number list in your cellphone,Then talk to me directly via these talking tools.
